Specifications

Conform to IS : 6175 Part2 : 2002
ISO 529 : 1975
BS 949 Part 1 : 1992

SCREWING TAPS - Hand & Short Machine Taps (ISO Metric Ground Threads Coarse Pitch(mm)Part 2)
Nominal DiameterPitchThread lengthOverall LengthShank Diameter (h9)Square Size(h11)Square Length
M30.5011.048.03.152.505
M3.50.6013.050.03.552.805
M40.7013.053.04.003.156
M4.50.7513.053.04.503.556
M50.8016.058.05.004.007
M61.0019.066.06.305.008
M71.0019.066.07.105.608
M81.2522.072.08.006.309
M91.2522.072.09.007.1010
M101.5024.080.010.008.0011

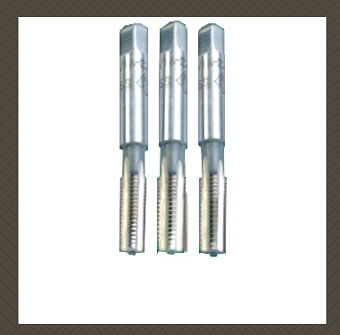

These taps are supplied in a set of three taper,Second,& bottoming non serial with thread Tolerance-6H.
Range Of Applications:-General purpose Tapping.
