Specifications

Conform to IS : 6175 Part2 : 2002
ISO 529 : 1975
BS 949 Part 1 : 1992

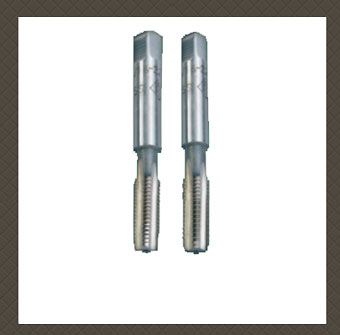

SCREWING TAPS - Hand & Short Machine Taps (ISO Metric Ground Threads Fine Pitch (mm) Part 2)
Nominal DiameterPitchThread lengthOverall LengthShank Diameter (h9)Square LengthSquare Size(h11)
M30.3511483.1552.50
M3.50.3513503.5552.80
M405013534.0063.15
M4.50.5013534.5063.55
M50.5016585.0074.00
M5.50.5017625.6074.50
M60.7519666.3085.00
M70.7519667.1085.60
M80.7516668.0096.30
M81.0019698.0096.30
M90.7516669.00107.10
M91.0019699.00107.10
M100.75177310.00118.00
M101.00207610.00118.00
M101.25207610.00118.00


These taps are supplied in a set of three taper,Second,& bottoming non serial with thread Tolerance-6H.
Range Of Applications:-General Purpose Tapping.
