Specifications

Conform to Dimensions in mm
IS : 6175 Part 3 : 2002
ISO 529 : 1975
BS 949 Part 1 : 1992

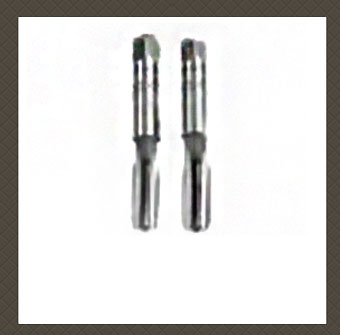

SCREWING TAPS - Hand & Short Machine Taps (ISO Metric Ground Threads Fine Pitch (mm) Part 3)
Nominal Diameter Pitch Thread length Overall Length Shank Diameter (h9) Square Size(h11) Square Length
M30.3511482.241.804
M3.50.3513502.502.004
M40.5013533.152.505
M4.50.5013533.552.805
M50.5016584.003.156
M5.50.5017624.003.156
M60.7519664.503.556
M70.7519665.604.507
M80.7516666.305.008
M81.0019696.305.008
M90.7516667.105.608
M91.0019697.105.608
M100.7517738.006.309
M101.0020768.006.309
M101.2520768.006.309
M110.7520808.006.309
M111.0020808.006.309
M121.0020809.007.1010
M121.2524849.007.1010
M121.5029899.007.1010
M141.00228711.209.0012
M141.25259011.209.0012
M141.50309511.209.0012
M151.00228711.209.0012
M151.50309511.209.0012
M161.00229212.5010.0013
M161.503210212.5010.0013
M171.00229212.5010.0013
M171.503210212.5010.0013
M181.00229714.0011.2014
M181.502910414.0011.2014
M182.003711214.0011.2014
M201.002710214.0011.2014
M201.502910414.0011.2014
M202.003711214.0011.2014
M221.002910916.0012.5016
M221.503311316.0012.5016
M222.003811816.0012.5016
M241.002911418.0014.0018
M241.503512018.0014.0018
M242.003512018.0014.0018
M251.002911418.0014.0018
M251.503512018.0014.0018
M252.003512018.0014.0018
M261.503512018.0014.0018
M271.003012020.0016.0020
M271.503712720.0016.0020
M272.003712720.0016.0020
M281.003012020.0016.0020
M281.503712720.0016.0020
M282.003712720.0016.0020
M301.003012020.0016.0020
M301.503712720.0016.0020
M302.003712720.0016.0020
M303.004813820.0016.0020
M321.503713722.4018.0022
M322.003713722.4018.0022
M331.503713722.4018.0022
M332.003713722.4018.0022
M333.005115122.4018.0022
M351.503914425.0020.0024
M361.503914425.0020.0024
M362.003914425.0020.0024
M363.005716225.0020.0024
M381.503914928.0022.4026
M391.503914928.0022.4026
M392.003914928.0022.4026
M393.006017028.0022.4026
M401.503914928.0022.4026
M402.003914928.0022.4026
M403.006017028.0022.4026
M421.503914928.0022.4026
M422.003914928.0022.4026
M423.006017028.0022.4026
M424.006017028.0022.4026
M451.504516531.5025.0028
M452.004516531.5025.0028
M453.006718731.5025.0028
M454.006718731.5025.0028
M481.504516531.5025.0028
M482.004516531.5025.0028
M483.006718731.5025.0028
M484.006718731.5025.0028
M501.504516531.5025.0028
M502.004516531.5025.0028
M503.006718731.5025.0028
M521.504517535.5028.0031
M522.004517535.5028.0031
M523.007020035.5028.0031
M524.007020035.5028.0031
M551.504517535.5028.0031
M552.004517535.5028.0031
M553.007020035.5028.0031
M554.007020035.5028.0031
M561.504517535.5028.0031
M562.004517535.5028.0031
M563.007020035.5028.0031
M564.007020035.5028.0031
M581.504819340.0031.5034
M582.004819340.0031.5034
M582.006420940.0031.5034
M584.006420940.0031.5034
M601.504819340.0031.5034
M602.004819340.0031.5034
M603.006420940.0031.5034
M604.006420940.0031.5034
M621.504819340.0031.5034
M622.004819340.0031.5034
M623.006420940.0031.5034
M624.006420940.0031.5034
M641.504819340.0031.5034
M642.004819340.0031.5034
M643.006420940.0031.5034
M644.006420940.0031.5034
M651.504819340.0031.5034
M652.004819340.0031.5034
M653.006420940.0031.5034
M654.006420940.0031.5034
M681.504820345.0035.5038
M682.004820345.0035.5038
M683.006421945.0035.5038
M684.006421945.0035.5038
M701.504820345.0035.5038
M702.004820345.0035.5038
M703.006421945.0035.5038
M704.006421945.0035.5038
M726.007923445.0035.5038
M721.504820345.0035.5038
M722.004820345.0035.5038
M723.006421945.0035.5038
M724.006421945.0035.5038
M726.007023445.0035.5038
M751.504820345.0035.5038
M752.004820345.0035.5038
M753.006421945.0035.5038
M754.006421945.0035.5038
M761.505122650.0040.0042
M762.005122650.0040.0042
M763.006724250.0040.0042
M764.006724250.0040.0042
M766.008325850.0040.0042
M782.005122650.0040.0042
M801.505122650.0040.0042
M802.005122650.0040.0042
M803.006724250.0040.0042
M804.006724250.0040.0042
M806.008325850.0040.0042
M822.005122650.0040.0042
M822.005122650.0040.0042
M852.005122650.0040.0042
M853.006724250.0040.0042
M854.006724250.0040.0042
M856.008626150.0040.0042
M902.005122650.0040.0042
M903.006724250.0040.0042
M904.006724250.0040.0042
M906.008626150.0040.0042
M952.005424456.0045.0046
M953.007026056.0045.0046
M954.007026056.0045.0046
M956.008927956.0045.0046
M1002.005424456.0045.0046
M1003.007026056.0045.0046
M1004.007026056.0045.0046
M1006.008927956.0045.0046


These taps are supplied in a set of three taper,Second,& bottoming non serial with thread Tolerance-6H.
Range Of Applications:-General purpose Tapping.
