Specifications

Conform to Dimensions in mm
IS 6308 : 2002
ISO 2587 : 1972
DIN 1885 : 1976

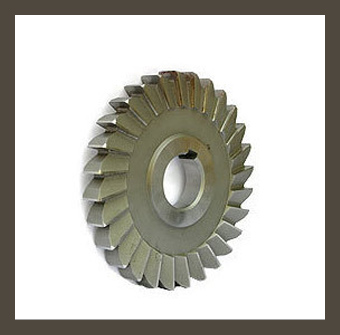

Milling Cutters (Bore Type) - Side and Face Cutters(Straight Teeth(mm))
Diameter(js16) Width(k11) Bore (H7)
50 4 16
50 5 16
50 6 16
50 8 16
50 10 16
63 4 22
63 5 22
63 6 22
63 8 22
63 10 22
63 12 22
63 14 22
63 16 22
80 5 27
80 6 27
80 8 27
80 10 27
80 12 27
80 14 27
80 16 27
80 18 27
80 20 27
100 6 32
100 8 32
100 10 32
100 12 32
100 14 32
100 16 32
100 18 32
100 20 32
100 22 32
100 25 32
125 8 32
125 10 32
125 12 32
125 14 32
125 16 32
125 18 32
125 20 32
125 22 32
125 25 32
125 28 32
160 10 40
160 12 40
160 14 40
160 16 40
160 18 40
160 20 40
160 22 40
160 25 40
160 28 40
160 32 40
200 12 40
200 14 40
200 16 40
200 18 40
200 20 40
200 22 40
200 25 40
200 28 40
200 32 40
200 36 40
200 40 40


Normally type N tools are supllied
