Copper Tube Quick Coupler

Leading Manufacturer of Copper Tube Charging Coupling, Gas Charging Quick Coupler, Quick Coupler For Refrigerant Compressor and Tube Coupling For Refrigeration from Mumbai.

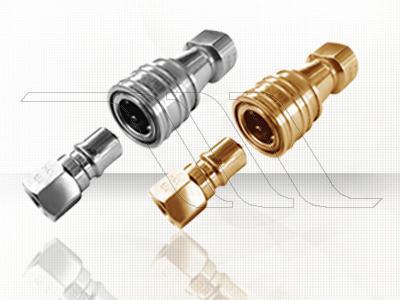

Gas Charging Quick Coupler

Double Shut Off Coupler works on simple push pull principle. To connect the coupler, plug is pushed into socket, it is securely held by the self locking arrangement resulting in positive and leak proof connection. This action simultaneously opens the valve and the flow of fluid starts.

To disconnect, pull back the sleeve of the socket, the plug ejects and valve shuts off automatically.
Double Shut off Couplers application on fluid line connections like Air, Gases, Liquids, Steam Oil etc., used in Chemical Petroleum, Pharmaceutical, Automotive, Refrigeration and other industrial uses.

Specifications :
1. Material of Construction: Stainless Steel, Gun Metal.
2. Size : 1/8, 1/4, 3/8, 1/2, 3/4.
3. Working Pressure : 40 Kg/ Cm2
4. Pressure Resistance : 60 kg/Cm2
5. Suitable Fluid : Air, Gases, Refrigeration, Automotive, etc.
6. Seal Material : FVK, NBR, HNBR, EPDM, etc.

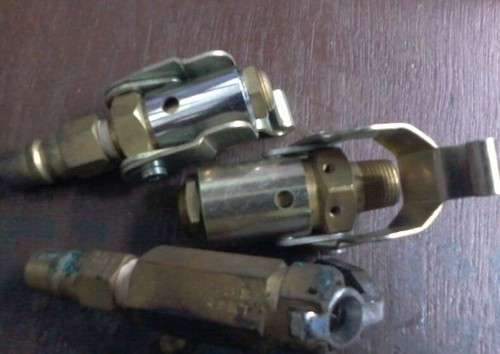

Quick Coupler For Refrigerant Compressor

FEATURES-
Simple pull operation . Pull housing sleeve for the insertion of the tube. The 8-24 ball construction depending on the type of fitting helps to grip the outer diameter of the tube. Single stage and multistage sealing. Suitable for high pressure appplication. Low maintenance cost. Basic criteria for Custom made models for selection of proper construction materials and seals Media or fluid of transfer into the component has to be prescribed by the buyer. Flow rate pressure at which the media or fluid is injected into the component has to be prescribed. Cycle time of each point. Atmospheric and testing conditions. End Connetion sizes required for the flow of fluids or media. NOTE : Please ensure that the tests are done in dust free conditions

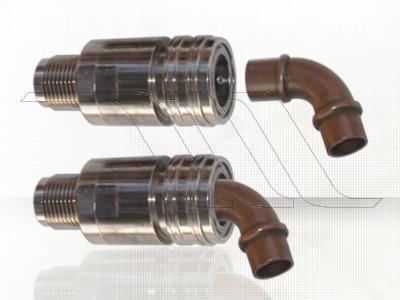

Tube Coupling For Refrigeration

Tube quick Coupling are extensively used for pressure testing, vaccumising,charging, of refrigerator, air conditioning units, by quickly connecting/disconnecting copper, s.s, etc tube.

Size:- 1/4"--3/8"--1/2"--5/8"--7/8"etc.
