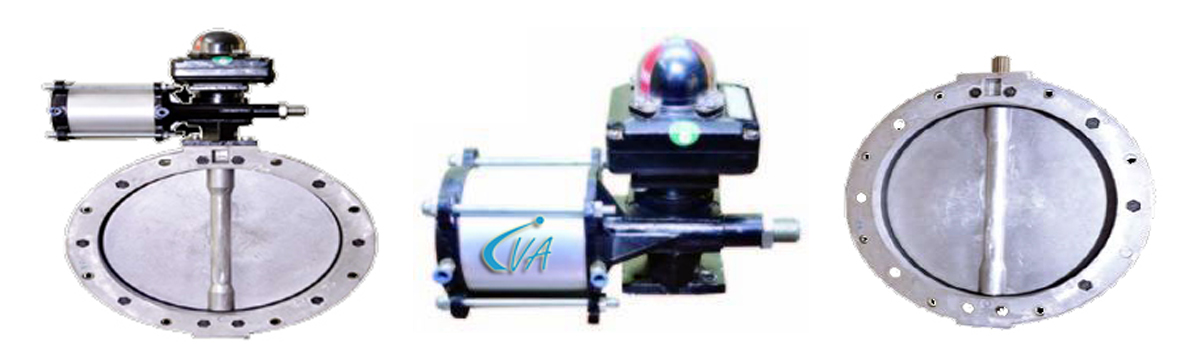

Aluminium die casting bodies, Aluminium die casting disc and NBR type rubber seal. Double identical flange type butterfly valve Top flange and Bottom flange suitable for flexible sleeve type arrangement Can be fitted with pneumatic actuators and manual lever type actuators Used in all types of powder and granules processing plants below the silo, bins, hoppers, screw conveyors for material isolation.
| CODE |
QA |
QB |
QC |
D |
E |
fig. |
| VAF - 100 |
100 |
180 |
220 |
200 |
235 |
1 |
| VAF - 150 |
150 |
200 |
228 |
234 |
269 |
1 |
| VAF - 250 |
250 |
300 |
328 |
334 |
369 |
2 |
| CSF300 |
300 |
350 |
378 |
384 |
419 |
2 |
Features of IVA designed Butterfly valves:
Lightweight and very easy to handle.
Easy to fit and quick maintenance.
Ex- stock delivery
