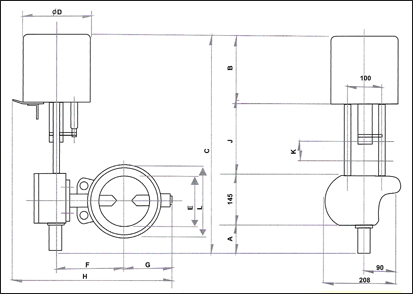

Valve Size*	Actuator Model	Dimensions
		A	B	C	D	øE	F	G	H	J	K	L
100	QST 5102	58	162	565	150	100	161	103	354	200	32	160
300	QST 5103	80	225	688	205	300	280	122	535	238	60	380

Regeltek Quarter-turn Electric Actuators For control Application

Technical Data & Specifications

Description	Model
	QST - 5102	QST - 5103
Rated actuating torque Kgm.	4	22.5
Max. closing torque Kgm.	7	34
Time of operation - Sec/90	120	130
Switching Frequency Operations/hour - Short time                          - Normal	7000 1800	7000 1800
Degree of protection	IP 55	IP55
Supply	220/11 0 V AC - 50/60 Hz 1 Phase
Motor Type	Non blocking A. C. Motor
Out put power Watt	3.14	16.5
Nominal current at 220 V-mA	40.5	133
Class of insulation	B	E
Ambient temp ºC	45	45
Weight kgs	8.3	14.7

Note-For standard and optional accessories Refer data given under Regeltek Linear Electric Actuators.
