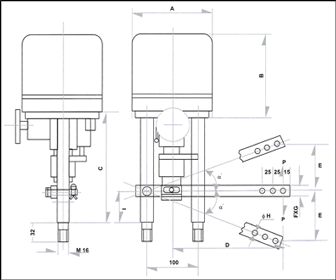

| Dimentional Details | ||||||||||
| Type | A | B | C | D | E | F | G | H | I | œ max |
| ST-5102-D-32 ST-5102-D-33 |
150 | 162 | 245 | 200 | 90 | 20 | 6 | 10 | 95 | 20 |
| ST-5103-D-61 ST-5103-D-76 |
205 | 225 | 300 | 300 | 180 | 30 | 10 | 15 | 108 | 30 |
Technical Data and Specifications
| Model | ST-5102 D-32 | ST-5102 D-33 | ST-5103 D-61 | ST-5103 D-76 |
| Input Supply |
220/110V 50Hz. AC |
220/110V 50Hz. AC |
220/110V 50Hz. AC |
220/110V 50Hz. AC |
| Output force 'P' (kgm.) Actuating Closing |
40 | 40 | 85 | 65 |
| 60 | 60 | 130 | 100 | |
| Output Torque (kgm.) Actuating Closing |
8 | 8 | 25 | 20 |
| 12 | 12 | 37.5 | 30 | |
| Stroke (mm) (max.) (2E) |
180 | 180 | 360 | 360 |
| Time of Operation (minutes) (for max. stroke) |
2.4 | 1.2 | 2.2 | 1.2 |
