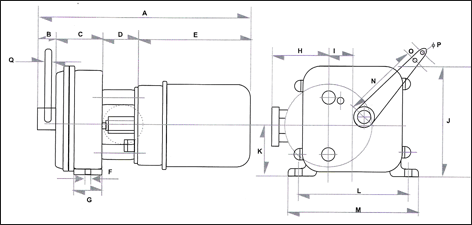

Model A B C D E F G H I J K L M N O P Q
RTD
5102		 333 30 75 60 168 14 48 90 41 192 90 180 210 125 25 10 6
RTD*
5103		 465 30 90 120 225 14 54 140 53 212 103 205 235 125 25 15 10


Technical Data & Specifications

Model RTD 5102 RTD 5103*
Input Supply 220/110 V AC
50/60 Hz. 1Ph 		220/110 V AC
50/60 Hz. 1Ph
Output force
Kgs. - Actuating
         Closing
40
60
75
110
Output torque Kgm.
         Actuating
         Closing
6
8
11
16
Angle of rotation adjustable 10° to 340°
Time of operation
Sec/90°		 45 45
