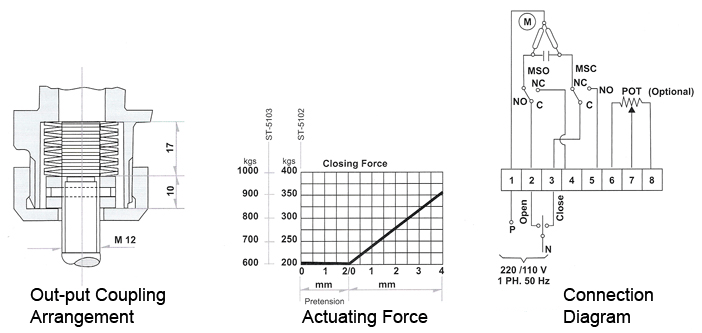

Accessories

i) Standard - • Travel limit switches (1 NO. + 1 NC) --2 Nos., Hand wheel, Local position indicator

ii) Optional - • Auxilliary limit switches (1 NO. + 1 NC) -- 2 Nos.
• Feed back potentiometer -- 2 Nos.( Max)
• Valve positioner - field/panel mounted Input:- 4-20 mA / 0-10 V.D.C. Output:- Proportional
• Two wire transmitter - field/panel mounted Input :- From potentiometer in the actuator. Output:- 4-20 mA
• Remote position indicator with Power source -- Analogue/Digital
• Space heater
• Linkages to operate dampers or butterfly valves.
• Special accessories on request.

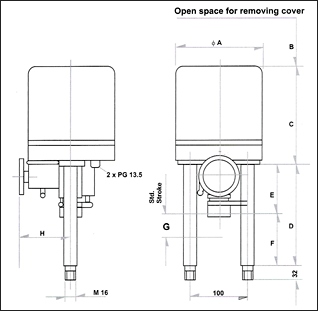

Dimentional Drawing

Dimentional Details
Model	Dimentions
	A	B	C	D	E	F	G	H
ST-5102	150	120	162	200	98	102	40	90
ST-5103	205	200	225	238	118	120	60	133
