II) Technical and ordering specifications for QMO & QM1 Quarterturn actuators.
| Model | Output torque Nm |
Output speed RPM |
Time of operation Sec/90 |
Motor Details | |
| Rated power Kw |
Rated speed RPM |
||||
| QM0/001/E | 200 | 1.2 | 12 | 0.75 | 1405 |
| QM0/002/E | 200 | 2.1 | 7 | 0.75 | 1405 |
| QM1/001/E | 350 | 0.4 | 38 | 0.75 | 1405 |
| QM1/002/E | 350 | 0.7 | 22 | 0.75 | 1405 |
lll) Technical & ordering specifications for LMO & LM1 Linear actuators.
| Model | Output Thurst Kgs |
*Output Speed of basic unit-RPM |
Linear speed of operation mm/sec |
stroke Length mm |
Motor Details |
| LM0 /*-/75 | 3000 | 10 TO 365 | 1 TO 36.5 | 75 | Refer motor details of basic MO & M1 models for respective speeds |
| LM1/*-/100 | 4000 | 10 TO 120 | 1 TO 12 | 100 |
Notes :
1) LMO models are available with all the output speeds of basic MO model.
2) LM1 models are available with all the output speeds of basic M1 model.
3) The linear travel in both the models is 6mm/ revolution.
4) Attachment for linear motion is available for other rotary models
IV) Flame / Explosion Proof Actuators:
- Add the prefix 'F' to all the above model specifications when ordering for
Flame / Explosion proof units.

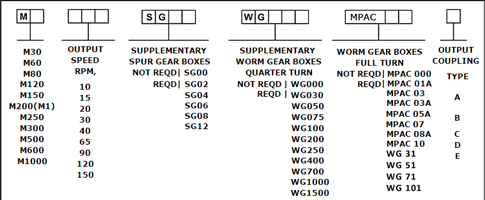

Example : FM1 / 010 / SG00 / WG030 / E.
