ELECTRONIC CONTROL PANEL.
• Digital Valve Position indicator.
• Open / Close push buttons for manual operation.
• Auto / Manual Selector switch.

Typical Valve Specifications / Features:-

Valve Type V-notch / Segment Ball Valve
Size DN - 25 40 50 75 100 150 200 250 & 300
End Connections Flange less / Flanged - Optional
Leakage Class Metal to Metal Seated - ANSI Class IV
Soft Seated - Teflon - ANSI Class VI
Body rating ANSI 150 and ANSI 300
Characteristics Equal Percentage - Approx.
Body 316 SS / Carbon Steel / Titanium
Ball / Segment 317 SS / Hard chrome plated Steel
Seat 316 SS / Teflon
Packing Teflon - V - rings / PTFE
Electric Actuator Specifications
Description Specification
Models ST - 5102 - S ST 5103 - S
To suit Valves - Size DN 25 40 50 75 & 100 150 200 250 & 300
Operation time Sec/90° 280 306
Torque developed - Nm 150 375
Degree of Protection IP - 55
Switching frequency-
Operations / hour
7000
Standard pulse width 0.01 sec.
Resolution steps /90° 27400 30600
Input Signal 230 /110 V AC Pulses from DCS / QCS
OR
4-20 mA / 0-10 VDC Control Signal
from Controller
Motor Type Non blocking - Stall Duty A. C. Motor
Supply Voltage 220/110 VAC 50 / 60 Hz 1 Phase
Motor rating - watts 4.7 23.6
Class of Insulation F F
Shaft Downstream ACCESSORIES
STANDARD
• Travel limit switches :
   2 Nos. (1 NO + 1NC)
• Hand wheel for manual    operation.
• Local position indicator		 OPTIONA L
• Additional limit switches 2 Nos.
   ( 1 NO + 1NC)
• Feedback potentiometer
• Two / Four wire transmitter
• Remote position indicator - digital
   Control panel
• Positioner to accept 4-20 mA /
   0-10VDC


VALVE TYPE :
Shear Stream

BODY RATING :
Class 150-600

TRIM CHARACTERISTIC :

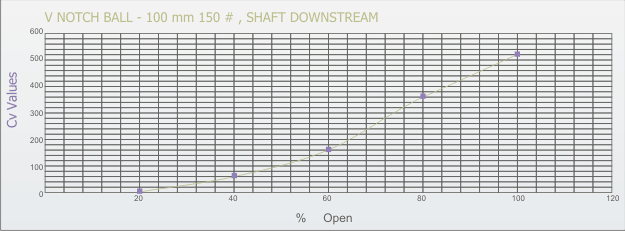

Shaft down stream		 FLOW COEFFICIENT - Cv
Valve
Size DN 		Cv at degrees open
10 20 30 40 50 60 70 80 90
25 0.1 0.72 1.8 3.5 5.7 8.6 12.4 75.6 24
40 0.21 1.4 3.7 7.4 12.3 18.9 28 40 57
50 0.5 3.2 7.2 13.2 21 32 47 70 110
75 7 19 34 56 85 124 185 239 280
100 13 33 59 94 140 195 271 361 462
150 19 54 110 176 260 371 519 716 945
200 45 104 185 291 425 589 825 1172 1675
250 92 220 354 572 835 1150 1620 2250 3180
300 120 287 461 746 1090 1500 2120 2940 4150
