Features:

• Two wire Transmitter
• Uses state of art analog technology
• Accepts wide supply voltage variations
• Protection against reverse supply connections
• Epoxy potting ensures excellent - protection against dust, moisture etc.
• Customer setting - SPAN, ZERO - easily accessible.

Note : SPAN and ZERO are interdependent

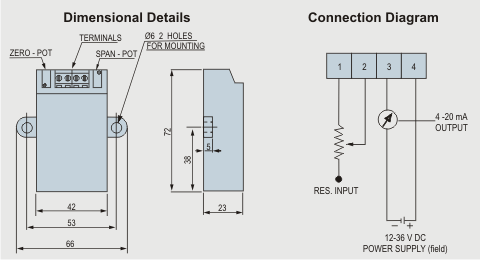

Technical Specifications

• Supply : 12 to 36 V DC
• Input : 100 to 235 - Standard supply. Other values available on demand
  (Only two wires of potmeter to be used as input)
• Output : 4 to 20 mA DC
• Customer : Zero : 4mA
  Span : 20 mA
• Linearity : ±1%

Position Transmitter with linkages for Linear Application

Technical features Model PPT-200L: This model has a reciprocating shaft, which can be coupled to any linear moving part so as to convert linear mechnical movement into an out put of 4-20 mA proportionately.

The reciprocating shaft is coupled to the potentiometer and the potentiometer output is converted into 4-20mA thru position transmitter. All the items are housed in a box having proper sealing to make it weather proof. A suitable cable gland is provided for cable entry. Adjustable mechanical stoppers are provided on the reciprocating shaft to restrict the desired movement of the shaft.

Technical Features Model PPT-200L-S This model has all the features that PPT-200L plus two cam operated adjustable end limit switches are provided to indicate extreme end positions. The switch operating cams can be set at site.

The switches are also housed in the housing that of transmitter making them weather proof. The switch terminals are taken on the strip provided inside the housing.

Position Transmitter with Linkage for Rotary Application

Technical Feature Model: PPT-200R
All Features same as that of PPT-200L Except that the External lever has a rotary action instead of reciprocating.

Technical Features - Model: PPT-200R-S
All Features same as that of PPT-200S except that switching operation will be thru rotary lever instead of reciprocating.
