Application :
« Normal Weighing (Power Up Zero).
« Hopper / Tank Weighing (Power Up Actual Weight Display)
« Peak / Hold Indication.
« Weigh Bridge Indicator
« Lit / Kg Facility
« Single Display Piece Counting.
« Level Controller (Up to 5 level)
« Filling Controller (Fine / Coarse / Tolerance Adjustment)
« Batching Controller (Multiple Ingredients)
« Thermal Printer Interface.
« LCD / Real Time Clock / VFD … Interface Options.
« RS232 Computer Interface / RS 485 Interface.
« PLC Compatible 0-10VDC or 4-20mA Current O/p.

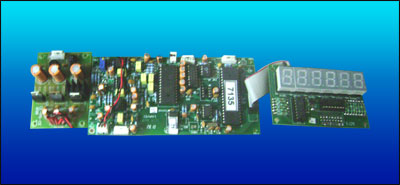

| Micro Controller | 89C52 |
| ADC | 7135 |
| Internal Counts | 4 ½ Digit. 40,000 (-20,000 TO +20,000) |
| External Counts | < 30,000 |
| Sampling Rate | ‘3’ Samples per second. |
| EEPROM | 93C46 |
| Display | Encoded – 6 digits 7 Segments – LED. |
| Amplifier Stage | 3 |
