Description : Model 90210 is a Strain Gage based, multicolumn compression type of Load Cell. It is hermetically sealed to provide better environmental protection. The cell is recommended for tank, truck, track and hopper type industrial applications. The cell is supplied with an integral 20 meter cable.
| Performance Specification | |
| Standard Capacities | 5, 7.5, 10, 15, 20, 23, 30, 45, 75, 100 - Tf |
| Excitation Voltage | 20 VDC- Maximum 15 VDC |
| Nominal Output | 2.0 mV/ V |
| Non - Linearity | 90210 - < ±0.15% FSO 90310 - < ±0.025% FSO |
| Hysteresis | < ±0.03% FSO |
| Non-Repeatability | < ±0.02% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 450 ± 2.0 Ohms |
| Output Resistance | 480 ± 7 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 300% |
| Allowable Side Load | 10% |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Deflection | < 0.4 mm at FSO |
| Finish & Construction | Epoxy Enamel |
| Environmental Protection Class | IP68 |

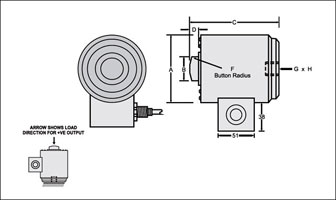

CAPACITY |
A |
B |
C |
D |
E |
F |
G |
H |
Cable Length Mtrs. |
5 to 30 |
73 |
32 |
82 |
8 |
39 |
150 |
M12 X 1.25 |
8 |
20 |
45 |
114 |
58 |
127 |
12.5 |
62 |
150 |
M20 X 1.50 |
20 |
20 |
75 to 100 |
140 |
80 |
184 |
26 |
87 |
430 |
M20 X 1.50 |
19 |
20 |
