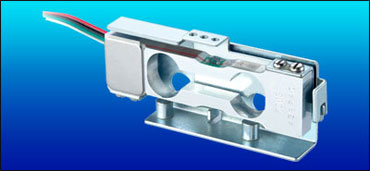

Description : Model ADI 60610 is a Strain Gage based low profile bending beam Miniature Load Cell and is ideal for Table Top & Jewellery Scales. It is designed for low eccentric load sensitivity. It is provided with mechanical over load & under load protection mechanism.
| Performance Specification | |
| Standard Capacities | 100, 200, 400, 500, 700 - Gmf 1,1.5, 2 - Kgf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 1.6 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±5.0% FSO |
| Input Resistance | 420 ± 15 Ohms |
| Output Resistance | 350 ± 3 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Cable Length (4 Core Screened) | 300 mm. Minimum |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 200% |
| Temp. Compensated Range | 0-60 0C |
| Platter Size | 120mm dia. |
| Eccentric Load Effect | < 0.02% of FSO at 1/3 rated load placed within the specified sized platter |
| Deflection | < 0.5 mm at FSO |
| Finish & Construction | Aluminium Alloy |

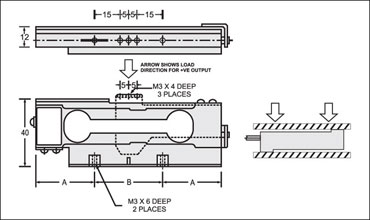

CAPACITY |
A |
B |
200 gmf. to 500 gmf. |
34.5 |
40 |
700 gmf. to 2
kgf. |
25 |
40 |
