Wiring Scheme : Red + (Input +) White - (Output -) Black - (Input -) Green + (Output +) It uses 4-core shielded cable (f3×420mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision.
Load Instruction :
Dimension (mm) :

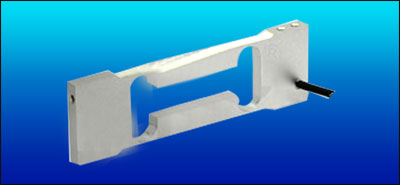

This product is customised based on CZL 605E. Refer to CZL 605E for dimensional diagram.
Size: 110x33x6(mm) Thread hole: 4-M3
| Performance Specification | |
| Comprehensive error: | 0.02%F.S |
| Insulation resistance: | ≥5000MΩ(100VDC) |
| Rated output: | 1.6 ±0.1mv/v |
| Excitation voltage: | 9VDC~12VDC |
| Non-linearity: | 0.03%F.S |
| Compensated temp.range: | -10℃~+40℃ |
| Hysteresis: | 0.03%F.S |
| Use temp.range: | -20~+60℃ |
| Repeatability: | 0.02%F.S |
| Temp.effect on zero: | 0.03%F.S/10℃ |
| Creep: | 0.02%F.S/10min |
| Temp.effect on span: | 0.02F.S/10℃ |
| Zero balance: | ±1%F.S |
| Safe overload: | 120% |
| Input resistance: | 405 ±5Ω |
| Ultimate overload: | 150% |
| Output resistance: | 350±3Ω |
| Defense class: | IP65 |
