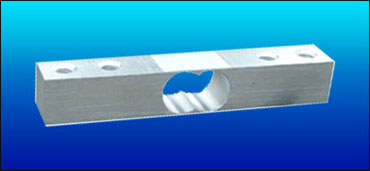

Description : This is an economical Load Cell meant for off-centre loading applications. It is used in bench, counting and postal Scales. It is strain gauge based Cell constructed from Aluminum Alloy for better sensitivity.
| Performance Specification | |
| Standard Capacities | 3, 6, 10, 15, 20, 30, 40, 60 - Kgf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 2.0 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 400 ± 15 Ohms |
| Output Resistance | 350 ± 5 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Cable Length (4 Core Screened) | 300 mm. Minimum |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 200% |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Platter Size | 300 mm X 300 mm |
| Tightening Torque | 1.5 m.kg. |
| Finish & Construction | Aluminium Alloy |
| Environmental Protection Class | IP65 |
