Description : Ultra Precision Strain Gage based 'S'-beam Load Cell is Versatile, compact and rugged. It is used for tension measurements, tensile testing, weighing, industrial automation and research applications. It is universal Load Cell Suitable for both-tension and compression modes.
| Performance Specification | |
| Standard Capacities | 20, 30, 50, 75, 100, 150, 200, 250, 300, 500, 750, - Kgf 1, 1.5, 2.5, 3, 5, 7.5, 10, 15, 20 - Tf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 3.0 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 392 ± 15 Ohms |
| Output Resistance | 350 ± 3 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Cable Length (4 Core Screened) | 5 mtr. Minimum |
| Safe Overload of Rated Capacity | 150% |
| Temp. Compensated Range | 0-60 0C |
| Deflection | < 0.4 mm at FSO |
| Tightening Torque | See Table Below |
| Finish & Construction | Electroless Nickel Plated Tool Steel |
| Environmental Protection Class | IP67 |

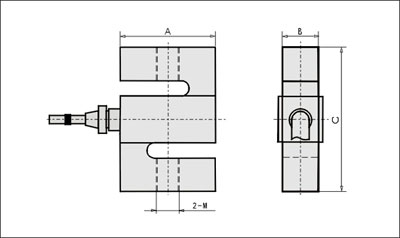

SEND PRODUCT ENQUIRYModel |
Load(kg) |
A |
B |
C |
M |
301 |
10~50 |
50.8 |
12.7 |
64 |
M8 |
100~500 |
50.8 |
19 |
76 |
M12x1.75 |
|
750~1500 |
50.8 |
25.4 |
76 |
M12x1.75 |
|
2000~5000 |
76.2 |
25.4 |
108 |
M18x1.5 |
|
301B |
250~500(lb) |
50.8 |
19 |
76 |
1/2-20UNF |
301C |
20~100 |
50 |
12.5 |
62 |
M6 |
150~1000 |
50 |
25 |
62 |
M12x1.25 |
|
1500~3000 |
75 |
27 |
100 |
M20x1.5 |
|
5000 |
90 |
40 |
140 |
M24x2 |
|
301S |
1000~3000 |
60 |
30 |
80 |
M16 |
