Description :

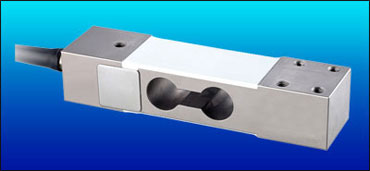

Model CEL 646D / 1410 is a Strain Gage based low profile bending beam Load Cell and is ideal for precision single point platform scale applications. It is designed for eccentric load sensitivity. Its tool steel Construction is very rugged to withstand shock loads. It is also Provided in Hardnable Stainless Steel - 17-4 PH construction.

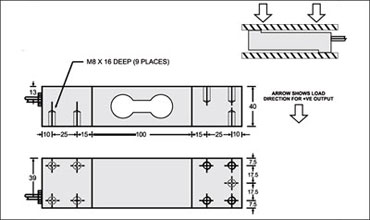

Dimension (mm) : Size: 200x50x40(mm), Thread hole: M8
| Performance Specification | |
| Standard Capacities | 200 , 300, 500, 750, 1000, 1500 Kgf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 2.0 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 400 ± 15 Ohms |
| Output Resistance | 350 ± 5 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Cable Length (4 Core Screened) | 500 mm. Minimum |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 200% |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Platter Size | 750mm X 750mm |
| Tightening Torque | 1.5 m.kg. |
| Finish & Construction | Aluminium / Alloy Steel |
| Environmental Protection Class | IP65 |
