Description :

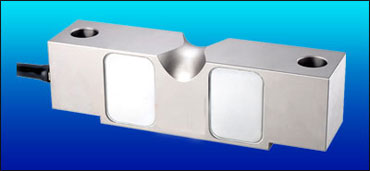

Model 70310-double ended shear beam Load Cell is ideally suited for truck, track, tank and hopper weighing applications. From its nickel exterior protection to its triple-seal gage area, this cell is designed to withstand the rigorous of harsh environmental conditions. The cell is compatible with the "Unlink" suspension system and is a direct replacement for the 65058. THIS CELL IS USED WITH THE ADI ARTECH WM-V-WEIGH MOUNT. -at an extra cost.
| Performance Specification | |
| Standard Capacities | 5,10,15,20,23,30,40,50,75,100 - Tf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 3.0 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 770 ± 20 Ohms |
| Output Resistance | 700 ± 7 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 300% |
| Allowable Side Load | 50% |
| Side Load Discrimination | 500:1 |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Deflection | < 0.5 mm at FSO |
| Tightening Torque | 10 m.kg. |
| Finish & Construction | Electroless Nickel Plated Tool Steel |
| Environmental Protection Class | IP68 |

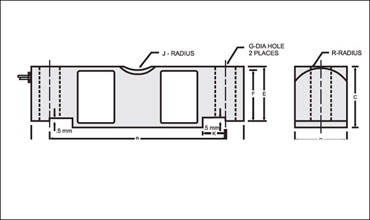

CAPACITY Tf |
A |
B |
C |
D |
E |
F |
G |
J |
R |
K |
Cable Length Mtrs. |
5 to 10 |
197 |
165 |
50 |
43 |
43 |
41 |
17 |
30 |
22 |
35 |
10 |
15 to 30 |
261 |
216 |
75 |
62 |
67 |
65 |
25 |
30 |
35 |
49 |
20 |
40 to 50 |
388 |
324 |
98 |
74 |
87 |
84 |
41 |
40 |
45 |
80 |
20 |
75 to 100 |
490 |
387 |
133 |
108 |
104 |
98 |
41 |
50 |
60 |
102 |
20 |
