Product Description

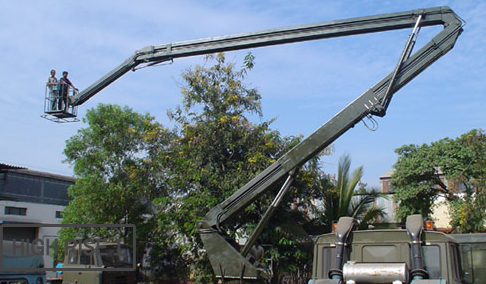

These are typically used in high reach areas that are inaccessable for the maintenance teams. (Typically for aeroplane Tail wing, antennas on towers).
The system is hydraulically operated and mounted on vehicle. The facilities that can be provided for the operater in the basket are electric and pneumatic power, water lines or any other similar requirement for maintenance crew operating at that height.
The system comes with a lot of built in safety features for operator and system protection.
The unit is completely independent entity for mobile maintenance application.
| Technical Specification : High Rise Work Station | ||
| Technical Parameters | Parameter Values | |
| 1. Bucket Size | 1200 x 800mm. | |
| 2. Capacity | 350 Kgs / 5 persons. | |
| 3. Height | 7 mtrs from center. | |
| 4. Rotation | 0 - ±180° | |
| 5. Retracted Height | 3.1m | |
| 6. Safety Features | ||
| a) Electrical | Limit switches for boundry conditions, proximity switches. | |
| b) Hydraulic | Pilot checks, Hose burst valves, over centre valves, Proportional valves. | |
| c) Mechanical |
Complete fabrication of arms done in stainless steel / high strength steel as per customer choice. Pentograph system to keep basket level (horizontal to ground at all times) Rigid construction to keep deflections to minimum. Bucket outside surface rubberised to avoid any dents/damage in case of impact. | |
| d) Controls |
Dual Control (from bucket as well as main control panel on vehicle). PLC control with built in programme for safety. |
|
