Shelter Jacks

Product Description

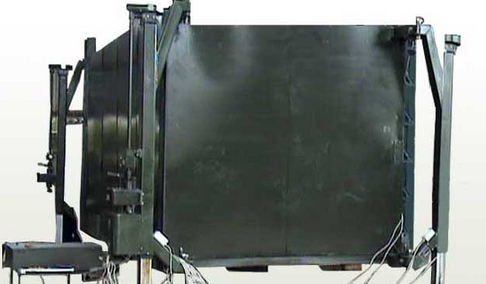

Quick deployment of defence assets in forward remote areas where there is lack of infrastructure is need of the hour. These jacks are used to load / unload, shelters / container without the help of cranes. They can be left attached to the shelters and can keep the shelter raised to a certain height above ground to keep it safe from ground conditions such as water logging, dirt / dust, level the shelter in case it is to be located on uneven ground.

We have two decades experience of various designs and have made over 100 sets for defence so far. The electromechanical version of jacks can be provided with autolevel function./p>

Technical Specification : Electromechanical Jacks
Technical Parameters Parameter Values
1. (i) Lifting capacity / system
(ii)Lifting capacity / 		jack 4 Nos. of jacks - 10 TONS.
3(SWL) TONS.
2. Maximum lift. 1750 mm from ground.
3. Maximum slope of shelter 2°
4. Weight of each jack 191 Kg. (excluding foot rest)
5. Cranck force / jack. 75N.
6. Lifting speed 230 mm/min.
7. Lifting Time @ 8 min.
8. Folding 95°, 135° (With respect to operating position.)
9. Vertical Center Distance between ISO Bolts As per customer requirement.
10. Center Distance between ISO Corner & Inner Tube As per customer requirement.
11. Operation Electrical wired remote/ Manual.
