C- Strut Support System

Features:

• Available in long lengths 3 Mtrs & 6 Mtrs.
• Available in standards sections namely 40 x 20 and 41 x 41
• C- Strut available in Hot Dip Galvanized, Pregalvanised, Powder Coated.
• Available with or without slots. Profab has a general practice to punch the C-Strut for multiple applications.
• C-Strut Racks can be fabricated out of the C-Strut sections.
• Wide Range of accessories available for fixing such as:
  • Spring Nuts
  • Beam Clamp
  • Framing Accessories like Elbows, Tees, Base Plate and Angle.

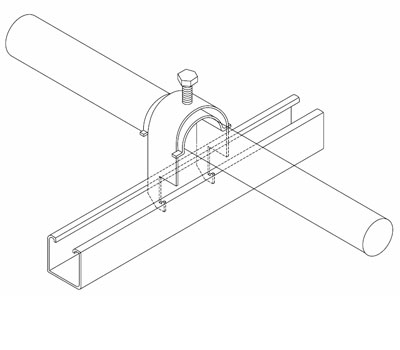

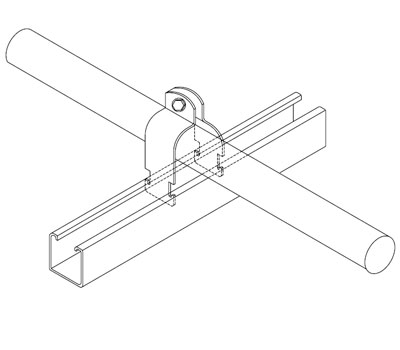

  • Cable Clamping accessories like Hook Clips and Split Clips.

Application of C- Strut Support Systems

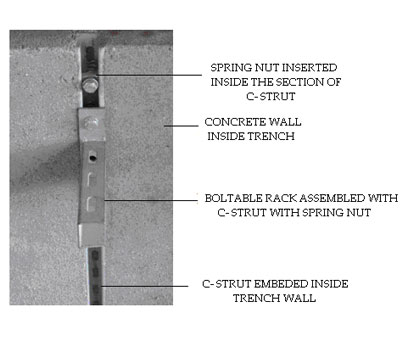

1. Concrete Trench Wall:

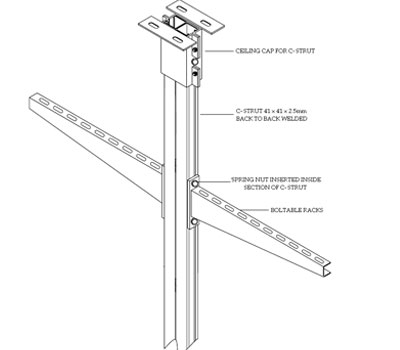

2. Ceiling Application/ Floor:

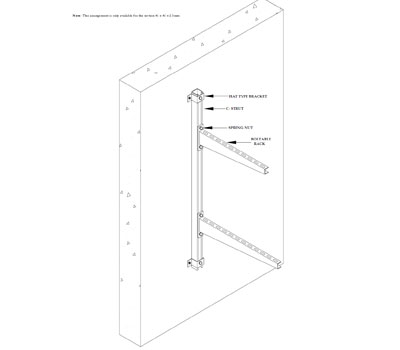

3. Wall Application:

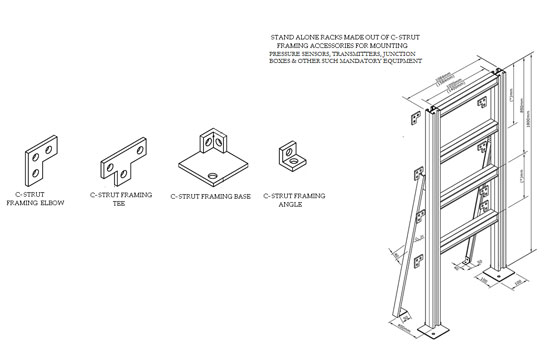

4. Framing Applications

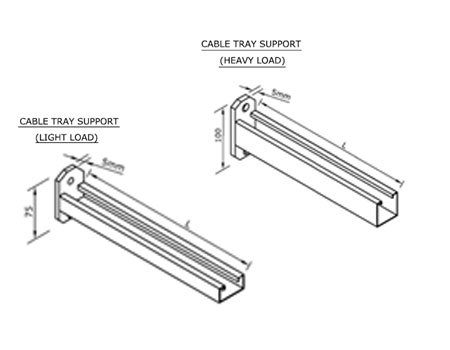

5. C Strut Racks

6. Clamping Accessories available with C- Strut

7. Clamping Accessories available with C- Strut

Application:

Table 1

Sr.No.	Section	Thickness (t)mm	Product Name
1	40 x 20 x 2/0mm	2.0mm	C- Strut 4020 Single
2	40 x 20 x 2/0mm (Welded Back to Back)	2.0mm	C- Strut 4020 Double
3	41 x 41 x 2.5mm	2.5mm	C- Strut 4020 Single
4	41 x 41 x 2.5mm (Welded)	2.5mm	C- Strut 4020 Double

Table 2

Sr.No.	Product Name	Section(mm)	Length of Rack(mm)
1	C Strut Rack 175mm Long.	40 x 20 x 2.0 Single Section	175
2	C Strut Rack 225mm Long.	40 x 20 x 2.0 Single Section	225
3	C Strut Rack 375mm Long.	40 x 20 x 2.0 Single Section	375
4	C Strut Rack 525mm Long.	41 x 41 x 2.5 Single Section	525
5	C Strut Rack 575mm Long.	41 x 41 x 2.5 Single Section	575
6	C Strut Rack 825mm Long.	41 x 41 x 2.5 Double Section	825
7	C Strut Rack 975mm Long.	41 x 41 x 2.5 Double Section	975
