Asbestos Textile & Ceramic Products for Heat Insulation
Asbestos Textile & Yarn for Heat Insulation
Graphite & Carbon Products

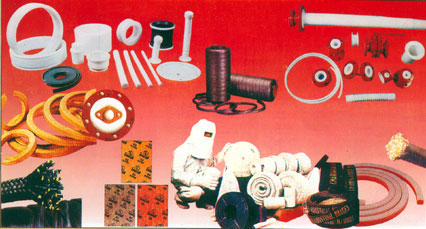

We offer Asbestos White dry packing Asbestos Lagging Rope (Soft) Asbestos Cloth (Metallic & Non-Metallic),Woven Asbestos Strips, Asbestos Listing Tapes and Asbestos Yarn, Asbestos wool etc.
- Non-metallic Ceramic Fibre yarn braided packing rope.
- Non-metallic Ceramic fibre yarn twisted packing rope.
- Metallic Ceramic Fibre yarn braided/ twisted packing rope.
- Ceramic fibre Fire & Flame protection blanket.
- Non-metallic Ceramic fibre yarn closely woven cloth.
- Metallic Ceramic fibre yarn closely
woven cloth reinforced
with SS/Inconel wire. - Non-metallic Ceramic yarn closely woven tape
- Metallic Ceramic yarn closely woven
tape reinforced
with SS/Inconel Wire.
Ceramic Cloth
Asbestos Cloth for Heat Insulation
Ceramic Packing
Ceramic Tape

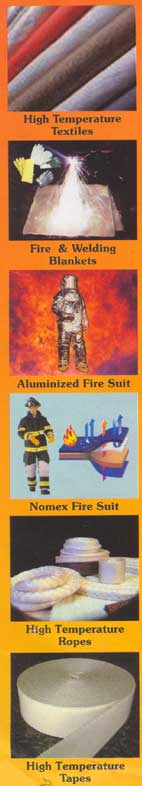

High Temperature Textiles:
V.Dipeshkumar & co. manufacture & supply varieties of non-asbestos high temperature textile for wide range of industrial applications
upto: 16490C
| Product Type | Temperature | Thickess (mm) | Size W/L (mtr) |
| VD-Sil (Silica 98%) | 1245 to16490C | 0.8 to 1.4 | 36" x 50 |
| Vermitech | 8160C | 0.8 to 3.2 | 40" x 50 |
| VD-Glass (100% Glass) | 5450C | 0.2 to 3.2 | 40", 60" x 50 |
| VD-Flex (Dupont Kevlar) | 3330C | 0.8 to 2 | 40" x 50 |
| Aluminised Glass Fabric) | 7000C | 0.4 to 3.2 | 40" x 50 |
| Silicon Glass Fabric | 3600C | 0.4 to 1 | 40", 60" x 50 |
| PTFE Glass Fabric | 2600C | 0.4 to 1.2 | 40" x 50 |
Other High temperature fabric products:
High Temperature Ropes:
Heat resistant ropes available in variety of formats for thermal engineering market. Materials Available: Glass Fibre, Silica fibre and
Para-Aramide Fibre.
Rope Types:
Lagging, Twisted or Stranded rope, Cabled Rope (yarn twisted) Braided packing (high density) and knitted in round and
square forms.
Sizes: 6mm to 5mm, Round and Square Types in 30 mtr. Rolls.
High temperature Tapes:
available in adhesive and non-adhesive types as mentioned below
| Tape Type | Temperature | Sizes wxl | Thickness mm |
| VD-Sil | 12450C | 2"/4 x 10 mtr. | 1 |
| VD-AL | 7500C | 2"/4 x 10 mtr. | 1 |
| Vermitech | 8150C | 2" x 30.5 mtr. | 2,3 |
| VD-Glass | 5450C | 2" x 30.5 mtr. | 2,3 |
CERAMIC & FABRIC INSULATION PRODUCTS
These Blankets are organic free, solid, light weight and flexible produced form alumina -silica fibre. During the production process these fibre are tightly woven i.e. Interlinked, This results in a tough blanket of strictly controlled thickness and bulk density with excellent handling properties.
| Ceramic Blankets | |
| Thicknes | 6 mm to 50 mm |
| Standard size | 610 x 7,300 mm |
| Densities | 64 to 128 kg/m3 |
| Temperature range | 1260 to 16500C |
| Composition | Al2O3 + Si02 + inorganic binders |
| Color | white |
| Ceramic cloth and Tapes | |
| Reinforcements | Glass, SS, Brass, Inconel and aluminum foil lamination |
| Thickess | 2 mm to 5 mm |
| Width : Tape | 15 mm to 200 mm |
| Width : Ceramic Cloth | 40" |
| Roll length | 30 mtr. |
| Temperature | 500 to 12600C |
| Ceramic Ropes | |
| Reinforcements | Glass, SS, brass and inconel |
| Type | Round, Sqaure, Braided or twisted |
| Standard size | 6 m to 5 mm any type |
| Temperature | 500 to 12600C |
Ultra Heat resistant Ceramic Board and Graphite Insulation
Special Ultra Heat resistant ceramic insulation Boards and Carbon Graphite insulation can be supplied upto temperatures 2,7500C
Fabric expansion joints & Belts.
We can manufacture single to multi-layer fabric expansion joints. These joints can be designed for temperatures upto 10000C to suit high pressure and corrosive environments of flue gas. Long life, low coast and ex-stock deliveries are our specialities. Our Engineers are capable to design and recommend expansion fabric joint fabric belts to suit your performance and budget.
CERAMIC & FABRIC INSULATION PRODUCTS
Cable and Hose protective Coverings
As s Result of on going R & D,V.Dipesh developed an import substitute for high tremprechare house coverings.
These are made as long as 5 mtr.X 500mm Dia, with varities of fabric combination and the renforcements for vrious high tremprechare aplications, to protect from molten metal, weding sparks and radient heat.Theese are made to order as per customer specifications and size.TemperAture : 545<> 00c to 12450c
Insulation jackets, pads and damper covers
Made in combination with varieties of fabrics designed to suit external corrosive condition and interntional high tremprechare .Thes Insulation pads, keep the systems temperature constant, projct human from burns saves costly equipment from fire hazards and ultimate energy conservation, in bringing down he outer skin tremprechare to ambient.
These are easy to install, repair and removable.
Applications:
Insulation Covers for boilers, furances, valves , industrial pipes , plastic injection moulding machnines , extruder barrels, Automotive exhausts, engine defectors , locomotives and trubo chargers.
