AAKAR MECHANICAL ENGINEERS

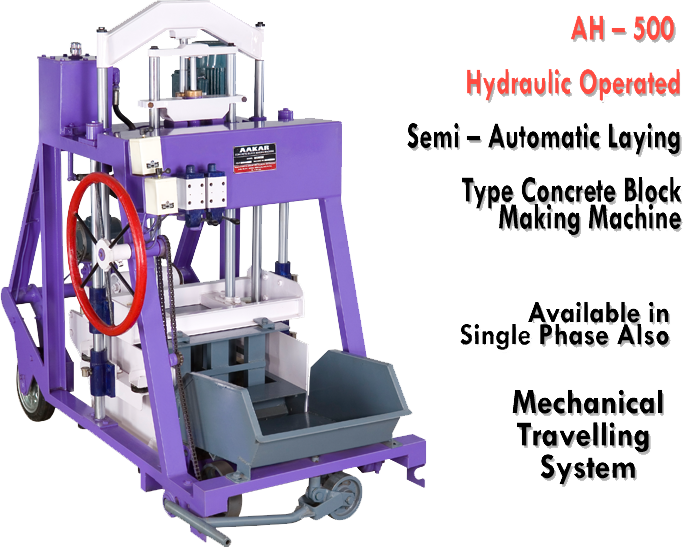

AH - 500
Specifications:
Capacity – 15 Operations per hour.
Power Required: Total - 1.5 H.P. Single Phase/Three Phase
(A) Hydraulic gear Pump Motor – 1 H.P.
(B) Vibrator Motor – 0.5 H.P.
Max. Height of concrete block- 250 mm x minimum 60 mm
Total Weight – 500 Kgs.
Size : 2 Mtr x 1.0 Mtr x 1.5 Mtr
Tie Bars : Are Ground & hard Chrome Plated.
Vibrations : 3000 Vibrations per minute
This is a Simple Sturdy and Portable Machine. Various Types Of concrete block can be manufactured on this machine. Such as cavity block, solid blocks & any other type as per customer requirement. Concrete Blocks Manufactured on Our Machines Are most Economical, Sturdy and speedy solution to create better housing of all types. These Blocks are very light and have excellent strength as Per ISI code. Offer good insulation against heat and cold and also sound absorbing. We get sharp edges blocks from these Machines. These machines are designed for long lasting service. All Normal Wearing parts are easily changeable and unskilled Worker can also operate this machine.
SIZES OF STANDARD RAMS & MOULDS SETS :
A) SOLID BLOCKS |
|
1) 150 mm x 200 mm x 400 mm |
3 Nos |
2) 150 mm x 200 mm x 300 mm |
3 Nos |
3) 100 mm x 200 mm x 400 mm |
4 Nos |
4) 100 mm x 200 mm x 300 mm |
4 Nos |
5) 75 mm x 100 mm x 225 mm |
7 Nos |
