AAKAR MECHANICAL ENGINEERS

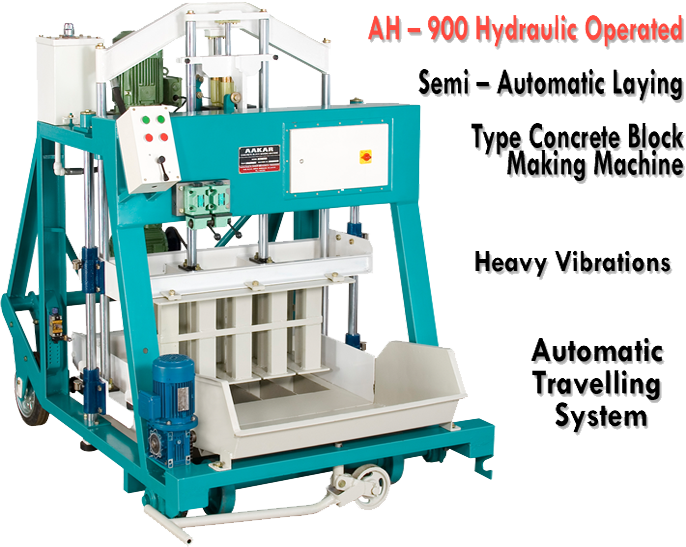

AH - 900
Specifications:
Capacity: 45 Operations per hour.
Power Required: Total - 4.5 H.P. Three Phase.
(A) Hydraulic gear Pump Motor – 3 H.P.
(B) Vibrator Motor – 1 H.P.
(C) Travel Motor – 0.5 H.P.
Total Weight – 900 Kgs.
Gross Weight – 1000 Kgs.
Size: 2 Mtr x 1.5 Mtr x 1.50 Mtr
Max. Height of concrete block: 250 mm x minimum 60 mm
Tie Bars : Ground & Hard Chrome Plated.
Vibrations: 3000 Vibrations per minute
Travel: Reduction gear unit is used for
forward and reverse motion.
This is a Simple Sturdy and Portable Machine. Various Types Of concrete block can be manufactured on this machine. Such as cavity block, solid blocks & any other type as per customer requirement. Concrete Blocks Manufactured on Our Machines Are most Economical, Sturdy and speedy solution to create better housing of all types. These Blocks are very light and have excellent strength as Per ISI code. Offer good insulation against heat and cold and also sound absorbing. We get sharp edges blocks from these Machines. These machines are designed for long lasting service. All Normal Wearing parts are easily changeable and unskilled Worker can also operate this machine.
SIZES OF STANDARD RAMS & MOULDS SETS :
A) CAVITY BLOCKS |
|
1) 200 mm x 200 mm x 400 mm |
4 Nos |
2) 150 mm x 200 mm x 400 mm |
5 Nos |
3) 100 mm x 200 mm x 400 mm |
7 Nos |
B) SOLID BLOCKS |
|
1) 200 mm x 200 mm x 400 mm |
4 Nos |
2) 150 mm x 200 mm x 300 mm |
5 Nos |
3) 150 mm x 200 mm x 400 mm |
5 Nos |
4) 100 mm x 200 mm x 400 mm |
7 Nos |
5) 75 mm x 100 mm x 225 mm |
14 Nos |
