Specifications

Conform to Dimensions in mm
BS 122 Part 1 : 1989

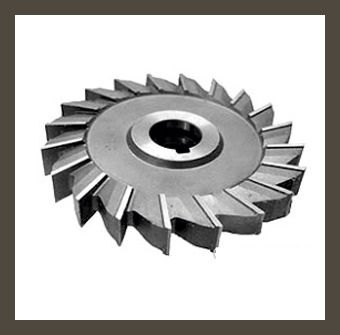

Milling Cutters (Bore Type) - Side and Face Cutters (Staggered Teeth (inches))
Diameter +0.045-0.0 Bore +0.00075+0.00025 Width+0.0005-0.0
3 1 1/4
3 1 5/16
3 1 3/8
3 1 1/2
4 1 1/4
4 1 5/16
4 1 3/8
4 1 1/2
4 1 5/8
5 1.1/4 3/8
5 1.1/4 1/2
5 1.1/4 5/8
6 1.1/4 3/8
6 1.1/4 1/2
6 1.1/4 5/8
6 1.1/4 3/4
7 1.1/2 1/2
7 1.1/2 5/8
7 1.1/2 3/4
7 1.1/2 7/8
8 1.1/2 5/8
8 1.1/2 3/4
8 1.1/2 7/8
8 1.1/2 1


Range Of Applications :- Used for end and face cutting.
