Specifications

Conform to IS 8305 : 2002
DIN 341: 1978

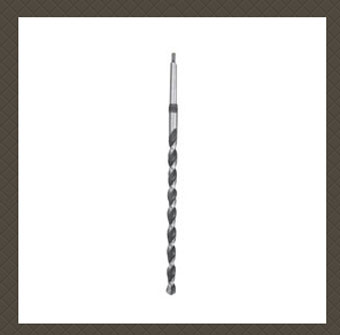

TWIST DRILLS - Taper Shank Twist Drills (Long Series)
Size(h8)(mm) Size(h8)(inch) Size(h8) No./Letter Flute Length Overall Length MT Shank No
5.00--741551
5.058-741551
5.10--741551
5.11-7741551
5.1613/64-741551
5.18-6741554
5.20--741551
5.22-5741551
5.30--741551
5.31-4801611
5.40--801611
5.41-3801611
5.50--801611
5.567/32-801611
5.60--801611
5.61-2801611
5.70--801611
5.79-1801611
5.80--801611
5.90--801611
5.94-A801611
5.9515/64-801611
6.00--801611
6.05-B861671
6.10--861671
6.15-C861671
6.20--861671
6.25-D861671
6.30--861671
6.351/4E861671
6.40--861671
6.50--861671
6.53-F861671
6.60--861671
6.63-G861671
6.70--861671
6.7517/64-931741
6.76-H931741
6.80--931741
6.90--931741
6.91-I931741
7.00--931741
7.04-J931741
7.10--931741
7.14-K931741
7.20--931741
7.30--931741
7.37-I931741
7.40--931741
7.49-M931741
7.50--931741
7.5419/64-1001811
7.60--1001811
7.67-N1001811
7.70--1001811
7.80--1001811
7.90--1001811
7.945/16-1001811
8.00--1001811
8.03-O1001811
8.10--1001811
8.20-P1001811
8.30--1001811
8.3321/64-1001811
8.40--1001811
8.43-Q1001811
8.50--1001811
8.60--1071881
8.61-R1071881
8.70--1071881
8.7311/32-1071881
8.80--1071881
8.84-S1071881
8.90--1071881
9.00--1071881
9.09-T1071881
9.10--1071881
9.1323/64-1071881
9.20--1071881
9.30--1071881
9.35-U1071881
9.40--1071881
9.50--1071881
9.523/8-1161971
9.58-V1161971
9.60--1161971
9.70--1161971
9.80-W1161971
9.90--1161971
9.9225/64-1161971
10.00--1161971
10.08-X1161971
10.10--1161971
10.20--1161971
10.26-Y1161971
10.30--1161971
10.3213/32-1161971
10.40--1161971
10.49-Z1161971
10.50--1161971
10.60--1161971
10.70--1252061
10.7227/64-1252061
10.80--1252061
10.90--1252061
11.00--1252061
11.10--1252061
11.117/16-1252061
11.20--1252061
11.30--1252061
11.40--1252061
11.50--1252061
11.5129/64-1252061
11.60--1252061
11.70--1252061
11.80--1252061
11.90--1342151
11.9115/32-1342151
12.00--1342151
12.20--1342151
12.3031/64-1342151
12.40--1342151
12.50--1342151
12.60--1342151
12.701/2-1342151
12.80--1342151
12.90--1342151
13.00--1342151
13.00--1342151
13.1033/61-1342151
13.20--1342151
13.30--1422231
13.40--1422231
13.4917/32-1422231
13.50--1422231
13.60--1422231
13.70--1422231
13.80--1422231
13.8935/64-1422231
13.90--1422231
14.00--1422231
14.25--1472452
14.299/16-1472452
14.50--1472452
14.6837/64-1472452
14.75--1472452
15.00--1472452
15.0819/32-1532512
15.25--1532512
15.4839/64-1532512
15.50--1532512
15.75--1532512
15.875/8-1532512
16.00--1532512
16.25--1592572
16.2741/64-1592572
16.50--1592572
16.6721/32-1592572
16.75--1592572
17.00--1592572
17.0743/64-1652632
17.25--1652632
17.4611/16-1652632
17.50--1652632
17.75--1652632
17.8645/64-1652632
18.00--1652632
18.25--1712692
18.2623/32-1712692
18.50--1712692
18.6547/64-1712692
18.75--1712692
19.00--1712692
19.053/4-1772752
19.25--1712752
19.4549/64-1772752
19.50--1772752
19.75--1772752
19.8425/32-1772752
20.00--1772752
20.2451/64-1842822
20.25--1842822
20.50--1842822
20.6413/16-1842822
20.75--1842822
21.00--1842822
21.0353/64-1842822
21.25--1912892
21.4327/32-1912892
21.50--1912892
21.75--1912892
21.8355/64-1912892
22.00--1912892
22.227/8-1912892
22.25--1912892
22.50--1982962
22.6257/64-1982962
22.75--1982962
23.00--1982962
23.0229/32-1982962
23.25--1983193
23.4259/64-1983193
23.50--1983193
23.75--2063273
23.8115/16-2063273
24.00--2063273
24.2161/64-2063273
24.25--2063273
24.50--2063273
24.6131/32-2063273
24.75--2063273
25.0063/64-2063273
25.25--2143353
25.401-2143353
25.50--2143353
25.75--2143353
26.00--2143353
26.191.1/32-2143353
26.25--2143353
26.50--2143353
26.75--2223433
26.991.1/16-2223433
27.00--2223433
27.25--2223433
27.50--2223433
27.75--2223433
27.781.3/32-2223433
28.00--2223433
28.25--2303513
28.50--2303513
28.581.1/8-2303513
28.75--2303513
29.00--2303513
29.25--2303513
29.371.5/32-2303513
29.50--2303513
29.75--2303513
30.00--2303513
30.161.3/16-2393603
30.25--2393603
30.50--2393603
30.75--2393603
30.961.7/32-2393603
31.00--2393603
31.25--2393603
31.50--2393603
31.751.1/4-2483693
32.00--2483974
32.50--2463974
32.541.9/32-2483974
33.00--2483973
33.341.5/16-2483974
33.50--2483974
34.00--2574064
34.131.11/32-2574064
34.50--2574064
34.921.3/8-2574064
35.00--2574064
35.50--2574064
35.721.13/32-2674164
36.00--2674164
36.50--2674164
36.511.7/16-2674164
37.00--2674164
37.311.15/32-2674164
37.50--2674164
38.00--2774264
38.101.1/2-2774264
38.50--2774264
38.891.17/32-2774264
39.00--2774264
39.50--2774264
39.691.9/16-2774264
40.00--2774264
40.481.19/32-2874364
40.50--2874364
41.00--2874364
41.281.5/8-2874364
41.50--2874364
42.00--2874364
42.071.21/32-2874364
42.50--2874364
42.861.11/16-2984474
43.00--2984474
43.50--2984474
43.661.23/32-2984474
44.00--2984474
44.451.3/4-2984474
44.50--2984474
45.00--2984474
45.241.25/32-3104594
45.50--3104594
46.00--3104594
46.041.13/16-3104594
46.50--3104594
46.831.27/32-3104594
47.00--3104594
47.50--3104594
47.621.7/8-3214704
48.00--3214704
48.421.29/32-3214704
48.50--3214704
49.00--3214704
49.211.15/16-3214704
49.50--3214704
50.00--3213214


Figures Mentioned in red are for reference only.
Range Of Applications:- Standard drills for use with drill bushing and for deep hole drilling
