A hot runner controller is a temperature controller used to control the temperature in a hot runner system. It is used to significantly speed up the injection molding process by eliminating the runner thus reducing a significant step in the molding process.
Features :
• Precision temperature control
• High quality heat sink plate prevents triac damage due to heat
• Precise current monitoring
• Thermocouple failure indication (Open & Reverse), auto terminate output
• Heater failure indication ( Short Circuit, Open & Over current), auto terminate output
• Triac, Fuse broken indication
• Alarm LED indication and Buzzer
• Misconnection between T/c and Heater protection
• 380V overload protection
• Stackable design to saves installation space.
• Handle in front to remove easily.
• Built in NFB switch
• Parameter protection function
• Universal standardized chassis for any brand of module

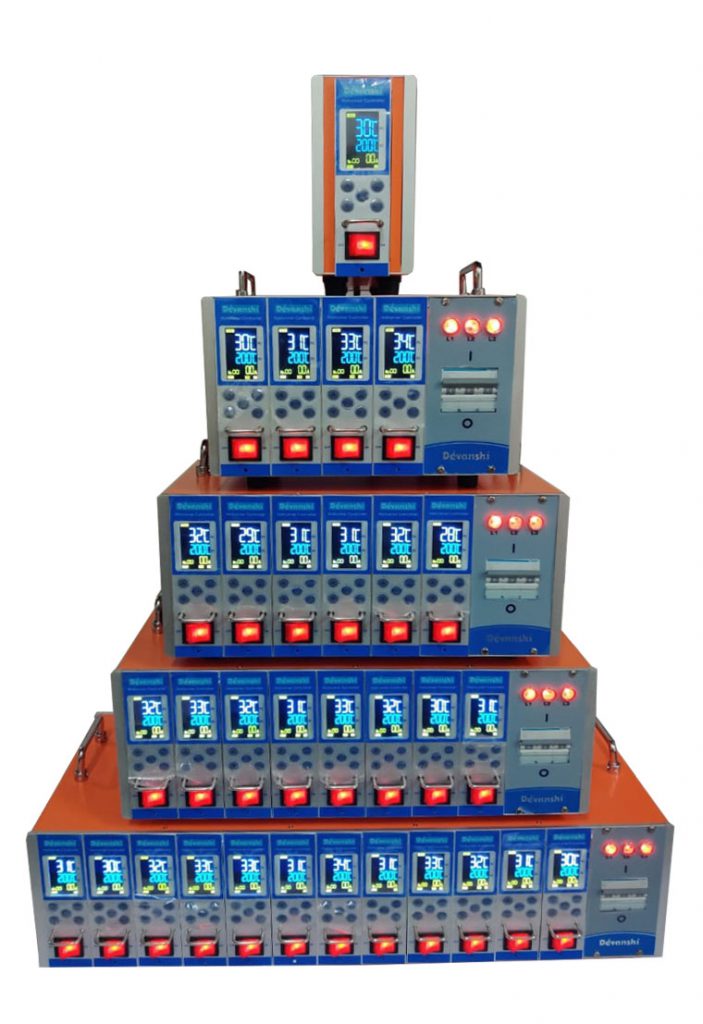

| DE-HTC01 | 1 zone | 2 zones | 4 zones | 6 zones | 8 zones | 12 zones |
| Type | PNL-HR-1 | PNL-HR-2 | PNL-HR-4 | PNL-HR-6 | PNL-HR-8 | PNL-HR-12 |
| Power Switch Capacity(A) | None | 32-2P | 32-3P | 32-3P | 63-3P | 63-3P |
| Output Connector | 4pin+E(ground) | 16pins x1 | 16pins x1 | 24pins x1 | 16pins x2 | 24pins x2 |
| Power Cable | 2.5mm²x 3C x 3M | 2.5mm² x 3C x 3M | 6mm² x 5C x 3M | 6mm² x 5C x 3M | 10mm² x 5C x 3M | 10mm² x 5C x 3M |
| Dimension W x H x D (mm) | 96 x 188 x 278 | 223 x 215 x 344 | 323 x 215 x 344 | 424 x 215 x 344 | 524 x 215 x 344 | 726 x 215 x 344 |
| Module Specifications | |
|---|---|
| Specification | DE-HTC01 |
| Control Points | 1 zone |
| Power Input | 85~265Vac, 50/60Hz |
| Power Consumption | 3W |
| Power Output | 3500W,230VAC/15A |
| Output Mode | Phase angel |
| Input Temp. Sensor | J/K type |
| Temp. Unit | °C/°F |
| Temp. Control Range | 45~550°C/ 110~999°F |
| Alarm Indication & Buzzer | Yes |
| Control Accuracy | ±0.5% FS |
| Measurement Accuracy | ±1% FS |
| Repeat Measure Accuracy | ±0.1% FS) |
| Storage Temp | -40~70°C/-40~158°F |
| Working Temp | 0~55°C/32~131°F |
| Humidity | > 10~95%RH.(non-condensing) |
| Fuse | Fast response ceramic F20A 250V 6.3*32 |
| Current Detection Function | Yes |
| Communication Mode | Optional |
Features :
• Precision temperature control
• High quality heat sink plate prevents triac damage due to heat
• Precise current monitoring
• Thermocouple failure indication (Open & Reverse), auto terminate output
• Heater failure indication ( Short Circuit, Open & Over current), auto terminate output
• Triac, Fuse broken indication
• Alarm LED indication and Buzzer
• Misconnection between T/c and Heater protection
• 380V overload protection
• Stackable design to saves installation space.
• Handle in front to remove easily.
• Built in NFB switch
• Parameter protection function
• Universal standardized chassis for any brand of module
| DE-HTC01 | 1 zone | 2 zones | 4 zones | 6 zones | 8 zones | 12 zones |
| Type | PNL-HR-1 | PNL-HR-2 | PNL-HR-4 | PNL-HR-6 | PNL-HR-8 | PNL-HR-12 |
| Power Switch Capacity(A) | None | 32-2P | 32-3P | 32-3P | 63-3P | 63-3P |
| Output Connector | 4pin+E(ground) | 16pins x1 | 16pins x1 | 24pins x1 | 16pins x2 | 24pins x2 |
| Power Cable | 2.5mm²x 3C x 3M | 2.5mm² x 3C x 3M | 6mm² x 5C x 3M | 6mm² x 5C x 3M | 10mm² x 5C x 3M | 10mm² x 5C x 3M |
| Dimension W x H x D (mm) | 96 x 188 x 278 | 223 x 215 x 344 | 323 x 215 x 344 | 424 x 215 x 344 | 524 x 215 x 344 | 726 x 215 x 344 |
| Module Specifications | |
|---|---|
| Specification | DE-HTC N1 |
| Control Points | 1 zone |
| Power Input | 85~265Vac, 50/60Hz |
| Power Consumption | 3W |
| Power Output | 3500W,230VAC/15A |
| Output Mode | Phase angel |
| Input Temp. Sensor | J/K type |
| Temp. Unit | °C/°F |
| Temp. Control Range | 45~550°C/ 110~999°F |
| Alarm Indication & Buzzer | Yes |
| Control Accuracy | ±0.5% FS |
| Measurement Accuracy | ±1% FS |
| Repeat Measure Accuracy | ±0.1% FS) |
| Storage Temp | -40~70°C/-40~158°F |
| Working Temp | 0~55°C/32~131°F |
| Humidity | > 10~95%RH.(non-condensing) |
| Fuse | Fast response ceramic F20A 250V 6.3*32 |
| Current Detection Function | Yes |
| Communication Mode | Optional |
