FRP Moulded Gratings
FRP Moulded Gratings are manufactured with the top of line moulding technology to provide high strength, performance and quality. These gratings can be manufactured in single sheets of size 1.2mtrs X 4 mtrs that is unparalleled in the industry. There are several variants available in terms of resin grades, surface textures and thickness for use across a range of industries. Custom cut sizes can also be made available based on requirement. With our expertise and skilled workforce we can suffice large requirements in short span of time.
| ADVANTAGES: | Industrial Application | Domestic Application |
|---|---|---|
|
• High resistance to corrosion and chemical resistivity • Easy to install and Maintain • High strength to weight ration • Long life span and low life cycle cost • Low installation cost • Electrically insulating • EMI / RFI transparency • Fire retardant grades available • Anti skid variants available • Available in range of colours |
• Floorings • Staircase • Walkways • Foot Bridges • Platforms • Trench Covers • Earth Pit Covers • Water treatment plants |
• Channel drain covers • Elevated Car Park • Swimming pool overflow • Gardens • Fencing |
Comparison
| PARAMETERS | HOT DIP GI | SS | EVERLAST FRP |
|---|---|---|---|
| LIFE SPAN | Moderate | High | High |
| STRENGTH TO WEIGHT RATIO | Low | Low | High |
| LIFE CYCLE COST | High | High | Low |
| CORROSION RESISTIVITY | Moderate | High | Very High |
| CHEMICAL RESISTIVITY | High | Moderate | High |
| ELECTRICAL CONDUCTIVITY | Nil | Nil | High |
| EMI / RFI TRANSPARENCY | Nil | Nil | High |
| INSTALLATION COST | Moderate | Moderate | Low |
| HANDLING | Difficult | Difficult | Very Easy |
| ANTI SKID | NA | NA | Available |
| COLOUR RANGE | NA | NA | Available |

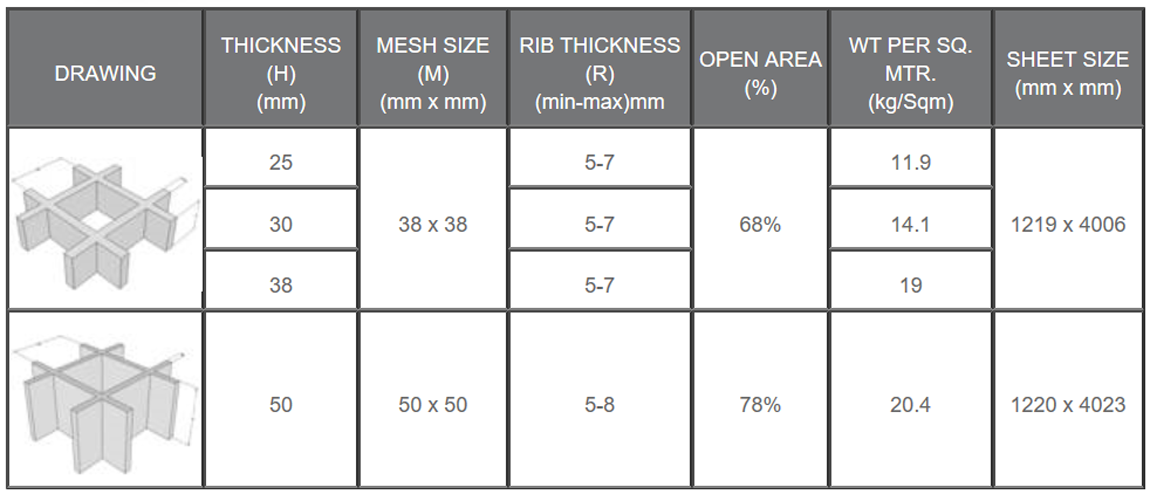

Dimension Details
| PARAMETERS | OPTIONS AVAILABLE |
|---|---|
| THICKNESS | 25mm, 30mm, 38mm, 50mm |
| RESIN VARIANTS | Isopthalic, Vinyl Ester, Bisphenol |
| SURFACE FINISH | Plain, Grit Surface (Anti Skid), Check Plate cover |
| MESH SIZE |
38mm X 38mm (For Thickness 25mm, 30mm & 38mm), 50mm x 50mm (For Thickness 50mm only) |

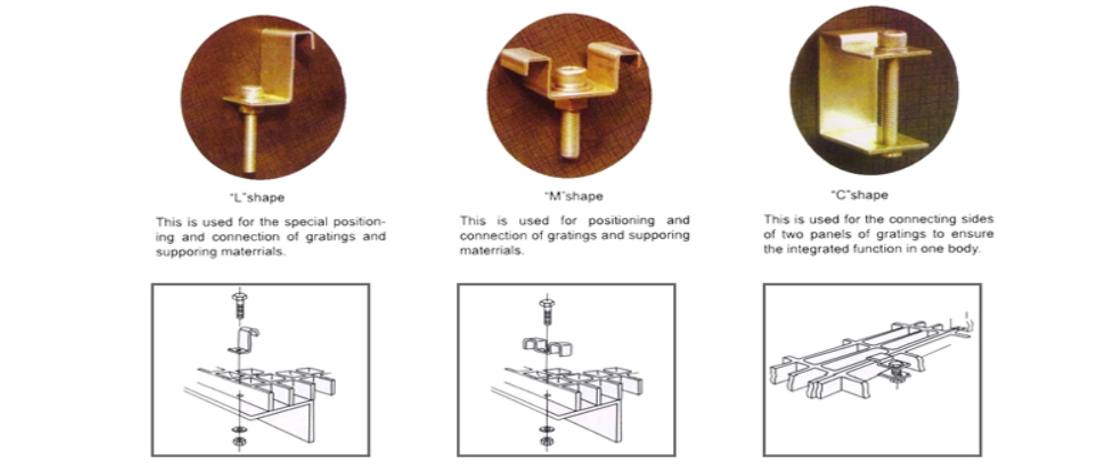

Fixing Clamps
Fixing Clamps are required during installation of gratings. Three types of clams are available based on location and type of joining required.
Colour Onlines
Standard colour EG102
