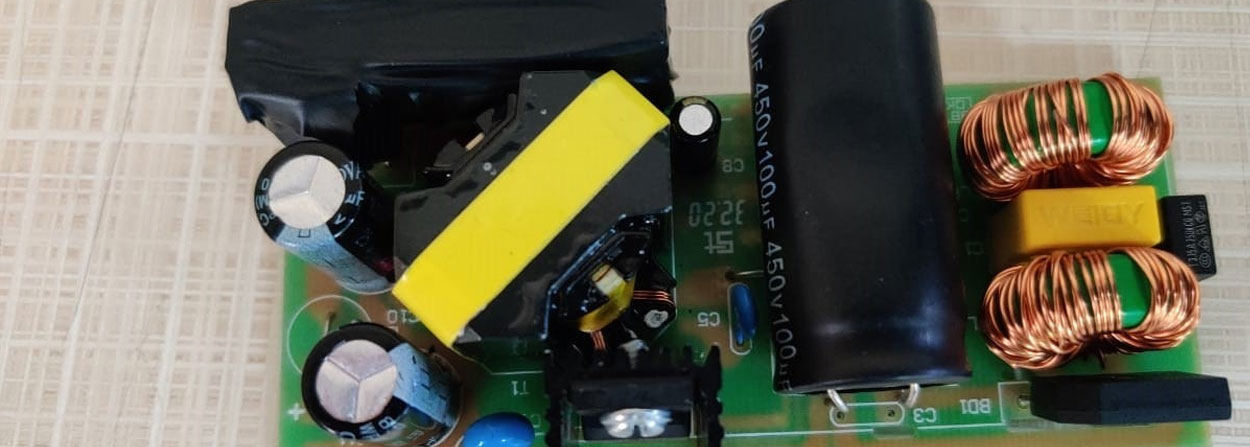

60 W Power Supply PSS
60 W Power Supply PSS
UC3800/B is a high-performance current mode PWM controller ideally suited for low standby power. High voltage startup is implemented in UC3800/B, which features with short startup time and no standby current. Features with Over Load protection and Short Circuit Protection.
Applications: –
- Water Purifier
- Battery Charger
- Power Adaptor
- Set top box Power Supplies
- Open frame SMPS
| INPUT PARAMETERS | |
|---|---|
| Input Voltage Range | 100 – 300 Vac |
| Input Rated Voltage | 240 Vac |
| Input Current | 300 mA |
| Standby Power at No Load | 100 mW |
| Rated Frequency | 50 Hz |
| - | - |
| OUTPUT PARAMETERS | |
| No load Voltage | 19.5 Vdc |
| Load Voltage | 19 Vdc |
| Load Current | 3.1 A |
| Output Power | 60 Watt |
| Ripple | 10% |
| Driver Efficiency (?) | =85% |
| - | - |
| PROTECTION | |
| Output Short Circuit Protection | Yes |
| Over voltage Protection | Shut Down and Auto Recovery |
| Input over voltage protection | Shut Down and Auto Recovery |
| Over temperature Protection | 150 deg |
| Over temperature Protection | Shut Down and Auto Recovery |
| - | - |
Connect with us on +91 9130015701 or send us a mail on info@millenniumsemi.com for the best quotes.
