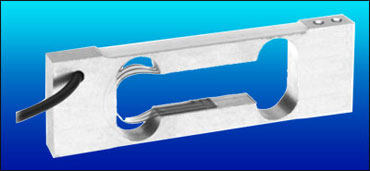

Description : Model NMB BCL Series is a Strain Gage based low profile bending beam Miniature Load Cell and is ideal for Table Top & Jewellery Scales. It is designed for low eccentric load sensitivity. It is provided with mechanical over load & under load protection mechanism.
| Performance Specification | |
| Rated Capacity (R. C) | 2.942 N (300 gf), 5.884 N (600 gf), 11.77 N (1.2 Kgf), 14.71 N (1.5 Kgf), 29.42 N (3 Kgf), 44.13 N (4.5 Kgf) |
| Safe Over load | 150% R.C |
| Ultimate Over load | 200% R.C |
| Rated Output (R.O) | 1.6 mv/v- 0.2 mv/v |
| Non linearity | 0.2% R.O |
| Hysteresis | 0.2% R.O |
| Repeatability | 0.2% R.O |
| Creep | 0.2% R.O / 20 min |
| Creep recovery | 0.2% R.O / 20 min |
