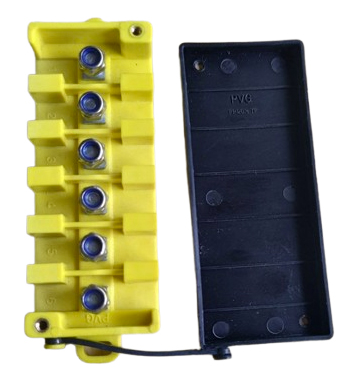

6 Pole Junction Boxes

We are Designer, Manufacturer, Supplier, Exporter of 6 Pole Junction Boxes and Our set up is in Pune, Maharashtra, India

USB Charging Port
Application / Use

Two- Wheelers, Three-wheelers, Four-Wheeler

Technical Specifications
Dimensions (LxWxH) (109x41x23) mm
Mounting Hole Dimensions (Center Distance) 100 mm
Mounting Hole size of Junction box Dia 4.4 X 2 nos
Maximum Diameter of Cables 4 mm
Max Current 40A
Voltage 24V, 36V, 48V, 60V, and 72V
Pole 6
Operating Temperature -50oC to 130oC
Dielectric Strength of Junction Box Base Material 100 kV/mm
Lug Size (ID) 5 mm
Key Advantages
  • Increased Reliability
  • Ease of Mounting
  • Enhanced Durability
  • Vibration-Resistant
  • High-Temperature Resistant Material
