80-100 Amp Charging Discharging Connectors

We are Designer, Manufacturer, Supplier, Exporter of 80-100 Amp Charging Discharging Connectors and Our set up is in Pune, Maharashtra, India

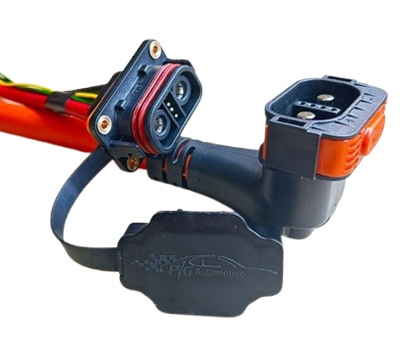

80-100 Amp Charging Discharging Connectors

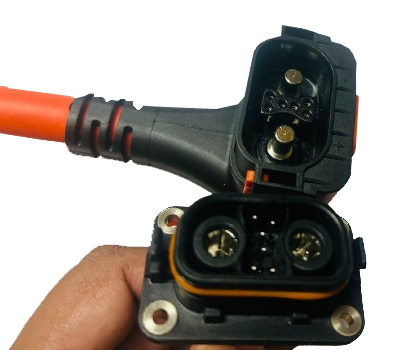

80-100 Amp Charging Discharging Connectors
Application / Use

Two Wheeler, Three Wheeler, Bicycle, Bike, Electric Vehicle

Specifications General
  • Models: Connector 2+4 and 2+6
Mechanical
Pull-out Force <110N
Mating Cycle 11,000 cycles
Electrical
Rating Voltage Max 120 VDC
Operating Voltage Max 120 VDC
Rating Current 2(80A/100A) + 4(5A) and 2(80A/100A) + 6(5A)
Discharging Peak Current 110A/130A for up to 30 seconds
Withstand Voltage Max 500 VDC for 1 minute
Insulation Resistance Min 100MΩ at DC 500V
Contact Resistance <1.16Ω/km
Environmental
Operating Temperature -40°C to 105°C
IP Rating IP67 (mated without cap)
Flammability Rating UL94-V0
Key Advantages
  • Terminal Holding & Engagement Technology
  • High Conductivity
  • Audible Click When Lock Engaged
  • C-Lock Technology for Locking & Unlocking
  • Improved Ergonomics Technology
  • High Mating & Un-mating Life Cycle
  • Tolerance to Mechanical Misalignment
  • IP67 (Dust & Water Proof)
