DC-DC Converter 48V/72V to 12V-15A

We are Designer, Manufacturer, Supplier, Exporter of DC-DC Converters 48V-72V to 12V 15A based in Pune, Maharashtra, India.

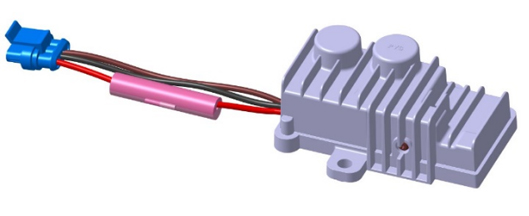

DC-DC Converter 15A
Technical Specifications
Input Voltage Range:
30–85 VDC
Nominal Voltage:
60/72 VDC
Output Voltage:
12.8VDC ±0.5VDC
Output Current:
15A constant, 17A peak
Line & Load Regulation:
±2%
Operating Temp:
0°C to +75°C
Enclosure:
Aluminum, IP67 waterproof
Dimensions:
110mm x 90mm x 45mm
Mounting:
Flange M6 Screw and Nut Bolt
Protection:
Fuse base protection
Casing:
Casting (PDC)
Key Advantages
Enhanced Durability
High Efficiency
Safe for use
Compact & Lightweight
Wide Input Voltage
High Current Capacity
Heat Management
IP67 Waterproof
