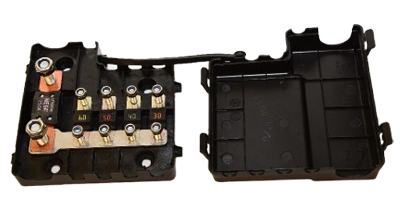

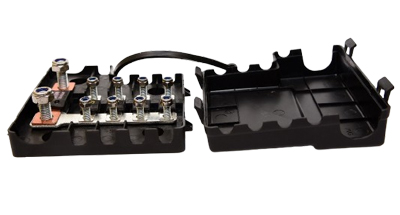

One Mega 4 Midi Fuse Boxes

We are Designer, Manufacturer, Supplier, Exporter of One Mega 4 Midi Fuse Boxes and Our set up is in Pune, Maharashtra, India

Application / Use

Four Wheeler Vehicle

Technical Specifications

Max Voltage 72 VDC

Working Temperature -10°C to 80°C

Max Current (Continuous) 170 A

IP Rating (With Cover) IP 22

Flammability UL 94 HB

Tightening Torque (M8) 11 Nm ± 20%

Tightening Torque (M5) 4.5 Nm ± 20%

Overall Dimension (LxWxH) 125 x 120 x 45 mm

Key Advantages
