Rectangular Push On Switches

We are Designer, Manufacturer, Supplier, Exporter of Rectangular Push On Switches and Our set up is in Pune, Maharashtra, India

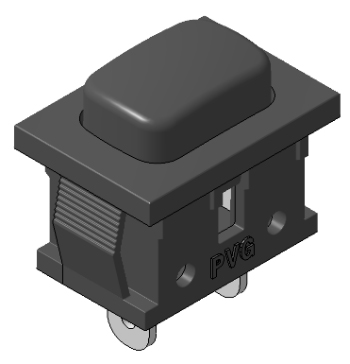

Rectangular Push On Switches
Technical Specifications
Type Push On Switch, SPDT
Panel Thickness Refer Panel Cut Out Table
V/A Rating 3A 125V AC, 1.5A 250V AC
Contact Resistance (Initial) 50 mΩ Max
Insulation Resistance 100 MΩ Min. at 500VDC
Mounting Panel, Snap-in
Terminals Soldering-Fast on 4.80 x 0.80
Electrical Life Cycle 10,000 Cycles
Operating Force 1000 gm
Mechanical Life Cycle 50,000 Cycles
Switch Action Momentary
Working Temperature -20°C to +85°C
Overall Size (LxWxH) 26 x 21 x 15 mm
Cut Out Size 19.4 x 13 mm
Key Advantages
  • Ease of Use
  • Durability
  • Versatility
  • Safety
  • Voltage Resistance
  • Temp Resistance
