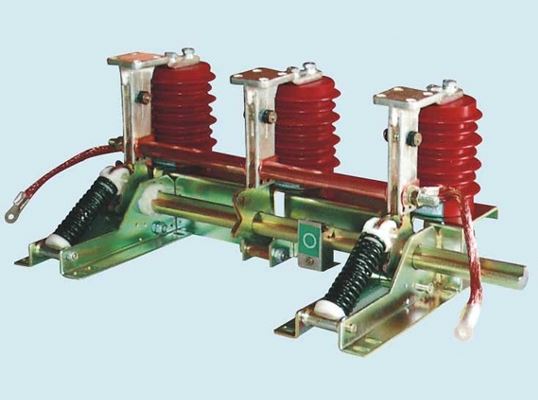

11-12KV EARTHING SWITCH

Designed for high-speed closing and dimensioned to conduct the rated short-circuit current when closed under load; rated voltage 12-40,5 kV, short-circuit current up to 120 kA

Product Scope

Earthing switch EK6 designed to conduct the rated short-circuit current when closed under load, rated voltage up to 40,5 kV, short-circuit current up to 120 kA.

• Easy application in wide range of configurations
• Ability to close at high short circuits currents
• Smart grid and network automation ready
• Suitable for compact, wall mounted applications
• High mechanical endurance
• Position indication from operating device
• 12 kV to 40.5 kV operating voltages
• Short time withstand current up to 50kA
• Up to 100kA fault making capacity
• Compact dimensions
• Visible knifes position
