Plastic Wheelchock R-270 for SCV
Green Plastic Wheel Chocks R-270 for SCV is suitable for the following Tyre sizes of TATA Vehicles.| Part Number | Height (mm/Inch | Width/Breadth (mm/Inch) | Length (mm/Inch) | Weight (Gms.)+/- (5%) | Applications | Gross Vehicle Weight |
| RP-R-270 | 150/5.90” | 170/6.70” | 250/9.84” | 700 + 300 Gms. rubber blocks | For SCV capacity per chock 1 Ton | 4 Ton |
| Sr. No | Vehicle Model | Tyre size | Width in Inches |
| 1 | Tata Ace HT High Deck/ Tata Magic | 145/ R12 LT | 5.7 |
| 2 | Tata Ace EX High Deck/ Décor | 155/ R13 LT | 6.1 |
| 3 | Tata Ace Mega/ Super Ace | 165/ R12 LT | 6.49 |

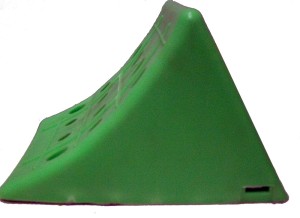

R-560-Side-View
R-560-Front-View

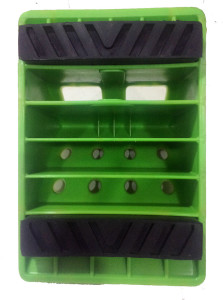

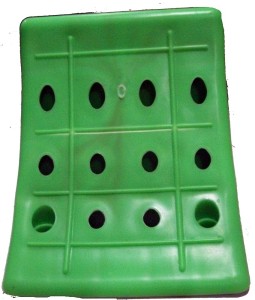

R-560-Bottom-View

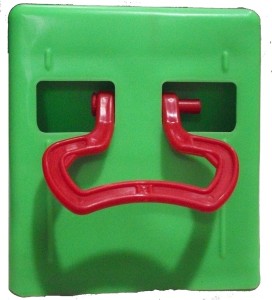

R-560-Back-View
