HOSE REEL DRUM

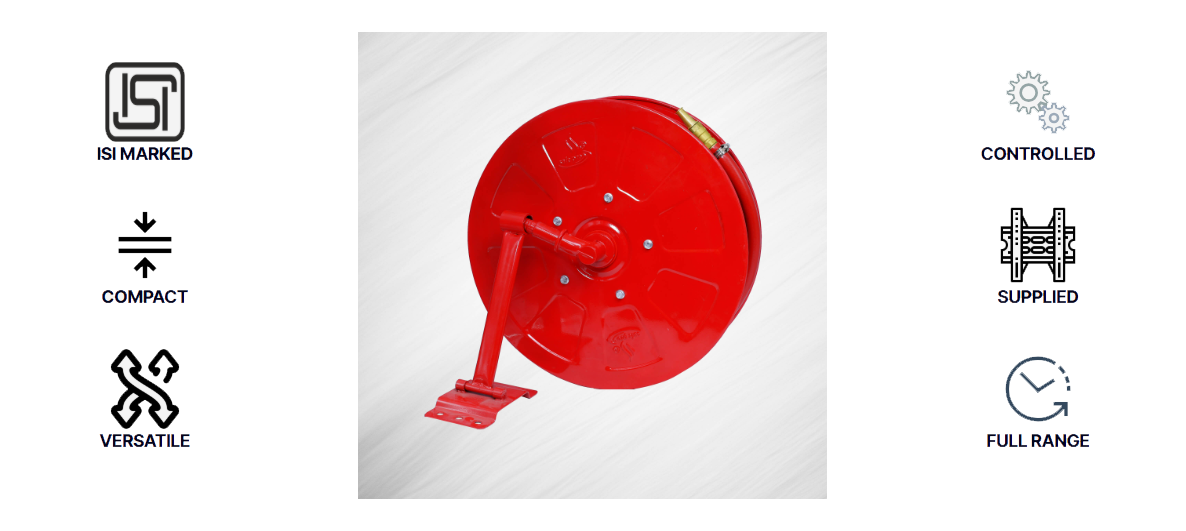

SWINGING TYPE WALL MOUNTED FIRST AID HOSE REEL DRUM

Technical Specification

  • Conforming To : IS : 884 / 1958
  • Size : Inlet : 1" Threaded Inlet Connection
  • Type : Swinging 180° Wall Mounting
  • Outlet : 3/4", 1", 1-1/2" outlet connection for hose to accommodate 30 / 36 / 40 Mtrs hose

Performance Test

  • Hydraulic Test : Tested at 21 Kgf/cm2
  • Range & Water Flow Rate Test at 7 Kgf/cm2
  • Discharge : 24 LPM
  • Range (Jet Length) : 6 Mtr (Minimum)
  • Halogram : Sticker Stuck On Wheel



COMPONENT MATERIAL SPECIFICATION
HUB SIDE & WALL BRACKET M.S. SHEET OF IS : 513
SWIVEL JOINT STEEL OF IS : 1239 (PART-1)
NOZZLE IS : 8090
HOSE REEL TUBING THERMOPLASTIC HOSE CONFORMING TO IS : 12585
RUBBER HOSE CONFORMING TO IS : 444
