Sarvesh Analytics Private Limited

"Established in the Year 2002, is an Original Equipment Manufacturer based in the Educational and Industrial Hub of Pune, India."

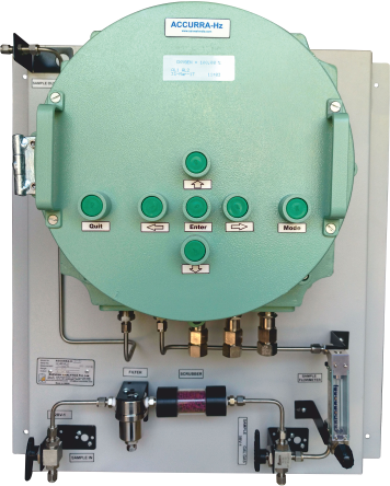

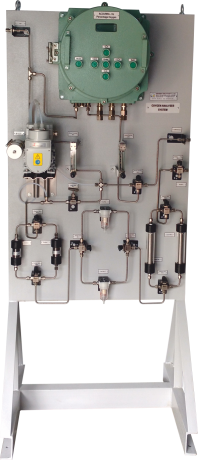

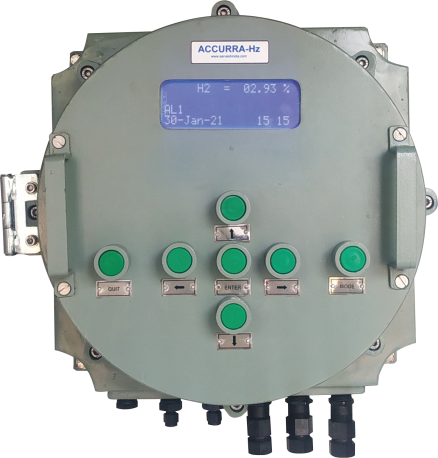

Gas Analyzer Rack-Hazardous Area Accurra-Hz Oxygen Analyser Accurra-Hz with Sample Handling System
Thumb 1 Thumb 2 Thumb 3

Hazardous-Oxygen Analyser

Our Hazardous Area Oxygen Gas Analyser is based on our advanced ACCURRA-Hz platform. Accurra-Hz analyser exceeds the industry expectations on Accuracy, Reliability and safety. They are best suited for online Safety monitoring of your Processes. It gives years of trouble free performance with least cost of ownership and are less prone to operational and/or calibration errors.

Applications

  • Online Safety Monitoring of Processes
  • Nitrogen Blanketing
  • Purity Measurements in Gas Productions
  • Trace Measurements of Impurities
  • Certifications of Gases
  • Hydrogenation Processes
Technical Details

Specifications & Features

  • Online Process Gas Analyser
  • Microprocessor Based with user Friendly Menu
  • Dual Level Password Protection
  • Suppressed Calibration Facility
  • Separate History for Alarms and Calibrations
  • Isolated 4-20 mA output with user programmable Dual range and Suppressed Range
  • Outputs Freeze / Follow Function
  • Self diagnostics and Calibration check
  • Modbus Communication
  • In-built Filter and Flow Indicator
  • Relay Outputs: Alarms (Lo-Hi, Lo-Lo, Hi-Hi), Fault, Pump Control / Range ID, Zero and Span Calibration Gases

ACCURRA – Hz 3015 / 3030

Specifications ACCURRA – Hz 3015 ACCURRA – Hz 3030
Measurement Range 0 – 1000 ppm 0 – 25 %
Minimum Measurement Range 0 – 100 ppm 0 – 5%
Sensor Technology Electrochemical Electrochemical
Sensor Life > 18 Months > 24 Months
Display Resolution 0.1 ppm 0.01 %
Response Time T90 < 30 sec < 20 sec
Repeatability Zero: +/- 2ppm
Span: 1% of reading		 +/- 0.04 %

ACCURRA – Hz 3130 / 3190

Specifications ACCURRA – Hz 3130 ACCURRA – Hz 3190
Measurement Range 0 – 25 % 95 – 100 %
Minimum Measurement Range 0 – 5 % -----
Sensor Technology / Life Paramagnetic / Non-Consumable Paramagnetic / Non-Consumable
Display Resolution .01 % .01 %
Response Time T90 < 5 sec < 5 sec
Repeatability Better than 0.1% of FS Better than 0.5% of FS
Compensation ----- with Ambient Temperature and Atmospheric Pressure compensation

ACCURRA – Hz 3090

Specifications ACCURRA – Hz 3090
Measurement Range 0 – 100%
Sensor Technology Electrochemical
Sensor Life 18 - 24 months
Display Resolution 0.01 %
Response Time T90 < 20 sec
Repeatability Better than +/- 0.5% of FS
Compensation with Ambient Temperature and Atmospheric Pressure compensation

Product Datasheet - Hazardous Area Oxygen Analyser

PDF Document • ACCURRA-Hz Series
