Sarvesh Analytics Private Limited

"Established in the Year 2002, is an Original Equipment Manufacturer based in the Educational and Industrial Hub of Pune, India."

Headline Filters Overview
Exclusive Dealers in India

We are the Exclusive Dealers for Headline Filters in India. We offer an extensive range of filters for instrumentation and analysis applications. All housings offer high flow rates and lower dead volumes and come in various configurations such as in-line, particulate and coalescing, and bypass or fast loop.

They can withstand pressures as high as 700 Bar and temperature as high as 500 Deg C. Standard Housings are available in a variety of materials such as 316L Stainless Steel, Aluminium, PTFE, PVDF (Kynar), Nylon, and Polypropylene. Housings are also available in exotic materials such as Hasteloy, Monel, and Titanium.

Our Range

Filter Categories

Filters for Gas Analysis

Filters for Gas Analysis

We offer an extensive range of filters for instrumentation and analysis applications. All housings offer high flow rates and lower dead volumes and come in various configurations such as in-line, particulate and coalescing, and bypass or fast loop.

Materials Available: 316L Stainless Steel, Aluminium, PTFE, PVDF (Kynar), Nylon, Polypropylene, Hasteloy, Monel, and Titanium.

  • Withstand pressures up to 700 Bar
  • Withstand temperatures up to 500 Deg C
  • Elements in Glass Microfibre, PTFE, SS316L

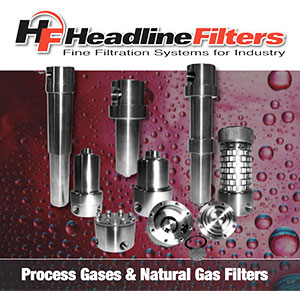

Filters for Processes

Filters for Processes

We provide an extensive range of filters for instrumentation and analysis applications. We have solutions for in-line, particulate and coalescing, and bypass. All housings offer high flow rates and fast response times.

  • Housing Material: SS316L / Hastelloy / Monel
  • Elements: Glass Microfibre / PTFE / SS316L / Hastelloy / Monel
  • Pressure Rating: 100 Bar Max
  • Temperature Rating: 450 Deg C Max
  • Sizes: 1/4" to 2"

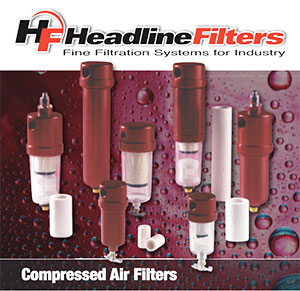

Filters for Compressed Air

Filters for Compressed Air

Even in a new installation compressed air is a heavily contaminated product. Dirt is ingested through the compressor inlet, oil is carried over from the piston, and water condenses out at the higher pressures. The demand for more sophisticated and reliable pneumatic systems can only be met by ultra-clean compressed air.

A well-designed coalescing filtration system will essentially remove all solid and liquid contamination, with minimum maintenance and operating costs. Headline coalescing filters remove 99.99% of solid and liquid particles and aerosols down to 0.1 microns.

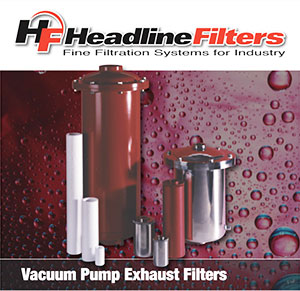

Filters for Vacuum Pumps

Filters for Vacuum Pumps

The exhaust from oil sealed vacuum pumps is laden with a fine stable oil aerosol. This pollutant must be removed or serious health and environmental damage may be caused.

Our vacuum pump exhaust filter housings and coalescing elements completely remove oil aerosols from the vacuum pump exhaust. Available in aluminum and stainless steel, the housings are suitable for flow rates up to 765 Nm3/hr and give complete security, low back pressure and running costs, and exceptional service life.
