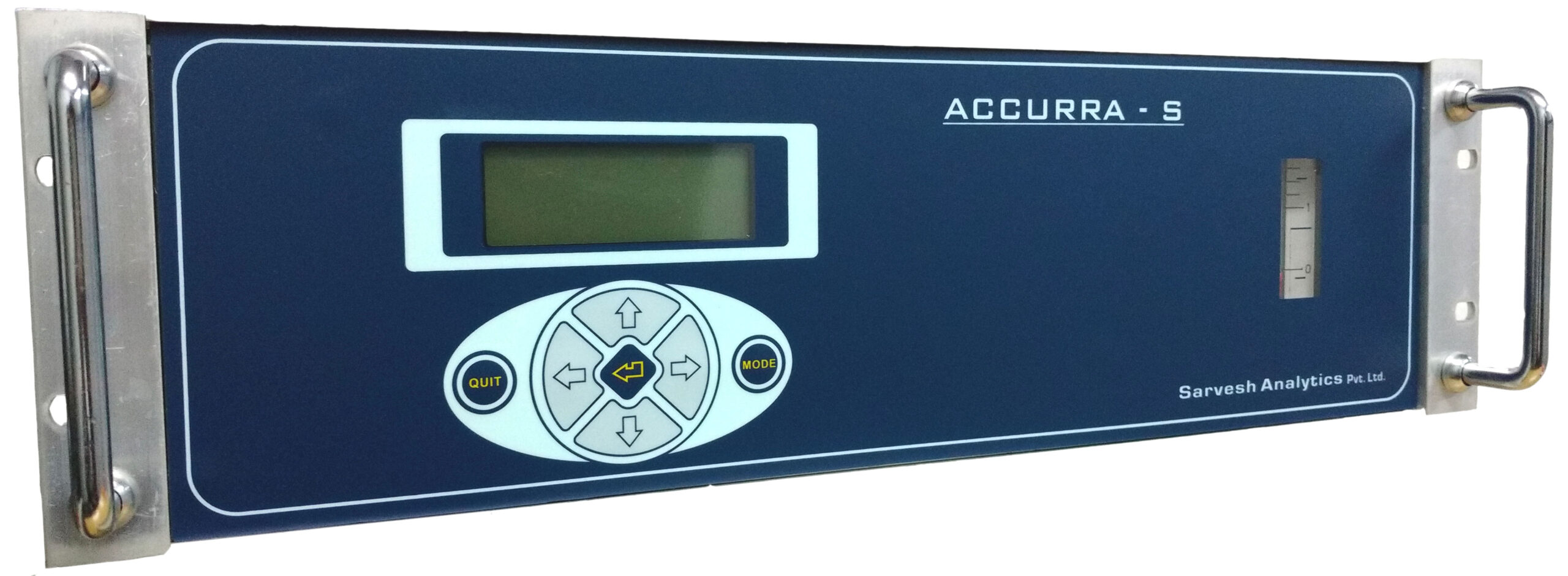

ACCURRA-S Helium Analyzer
Thumb 1
TCD (He)

Our Online Helium Gas Analyser is based on advanced Platinum based Thermal Conductivity Sensor. The measurement does not require any Reference Gas. It is housed in our well proven ACCURRA-S platform which exceeds the industry expectations on Accuracy, Reliability and Cost of Ownership. It gives years of trouble free performance and are less prone to operational and/or calibration errors. They are best suited for online monitoring of Processes mainly for safety, efficiency and product quality.

Applications

  • Online Process Gas Analyser
  • Binary Gas Analysis
  • Purity Measurements in Gas Productions
  • Certifications of Gases
Technical Details

Specifications & Features

  • Online Process Gas Analyser
  • Microprocessor Based with user Friendly Menu
  • Dual Level Password Protection
  • Suppressed Calibration Facility
  • Separate History for Alarms and Calibrations
  • Isolated 4-20 mA output with user programmable Dual range and Suppressed Range
  • Outputs Freeze / Follow Function
  • Self diagnostics and Calibration check
  • Relay Outputs:
    • Alarms: User programmable, Lo-Hi, Lo-Lo, Hi-Hi
    • Fault
    • Pump Control / Range ID
    • Zero and Span Calibration
  • Modbus Communication
  • In-built Filter and Flow Indicator
Specifications / Model ACCURRA – S 7130
Measurement Range 0 – 100 % He
Background Gases N2, Air, Ar (any one)
Sensor Technology Thermal Conductivity Detector (Platinum based)
Response Time T90 < 10 sec
Display Resolution 0.01 %
Repeatability < 1% of the FS

Product Datasheet - Thermal Conductivity Analyser

PDF Document • ACCURRA-S Series
