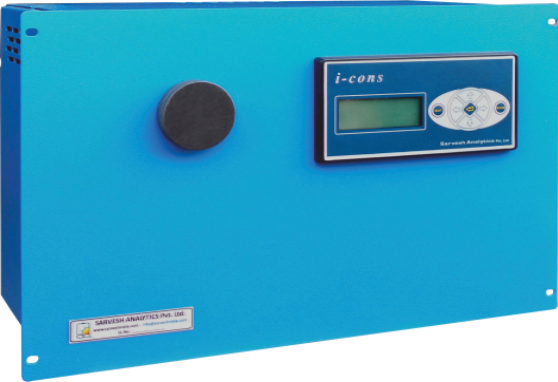

Smart Sampling System i-Cons Smart Sampling System i-Cons Smart Sampling System i-Cons

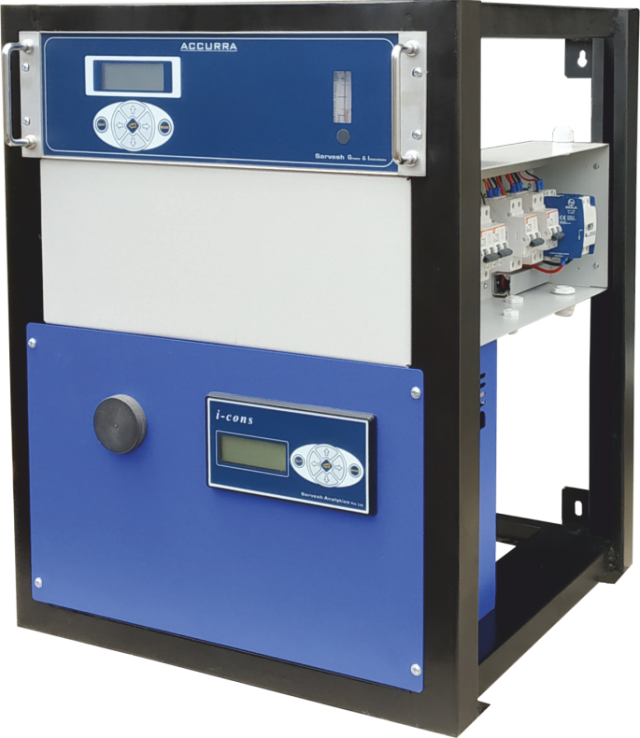

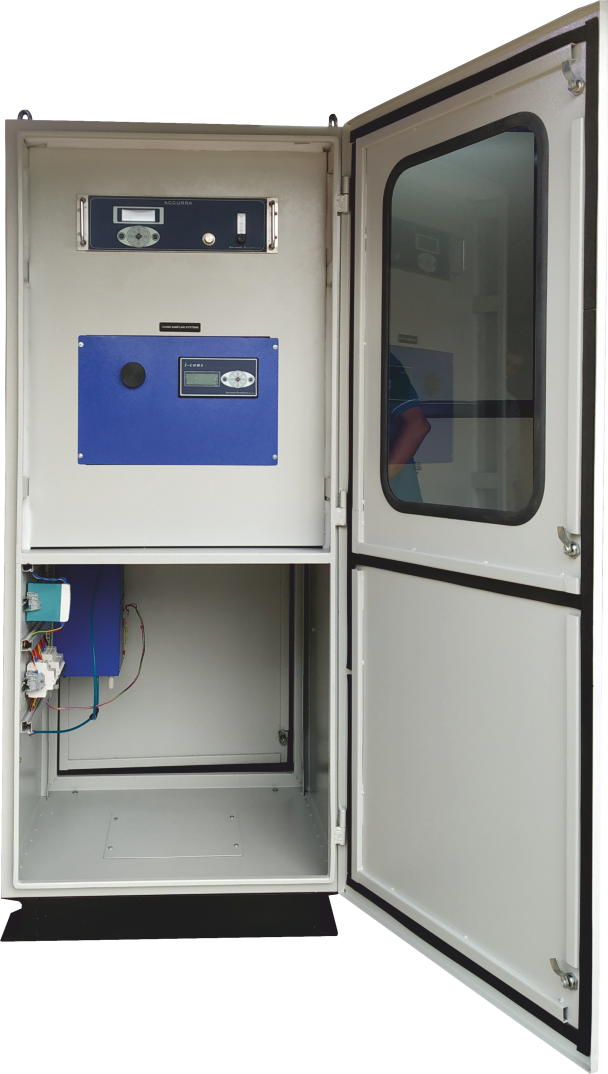

Smart System Front Gas Analyzer Rack Analyzer Panel

Smart Systems for Gas Analyser

Intelligent Sampling System

i-cons is the most advanced intelligent and compact extractive sample conditioning systems based on our powerful peltier cooler. It incudes all the essential Sampling components, Realtime Diagnostics with Auto correction and early warnings, History and Modbus communications. It can be set up with in an hour and can be put into service. This makes it suitable for panel integration or even portable application.

Applications

  • Consumes Less Panel Space or Table Space
  • Needs very Few External components
  • Enables Fastest Integration Time
  • Reduces Direct and Indirect cost
Technical Details

Specifications & Features

  • Peltier based cooler with PFFE heat exchanger
  • Suitable for Online Process or Laboratory Gas Analysers
  • In-built Components:
    • Sample Pump
    • Peristaltic Pump with variable discharge rate
    • Condensate Detector
    • Fine Filter
    • Flow Fail Detector
    • Auto calibration Solenoid Valves
  • Condensate Protection and Sample Pump Control Logic
  • Control Output for Blowback, Sample Solenoid Valves & Heated Hose
  • Auto Blowback on Flow Fail
  • Alarm / Fault History
  • Auto Start-up sequence
  • Modbus over RS 485
Specifications / Model i-Cons
Inbuilt Components 1 x PTFE heat Exchanger
1 x Peristaltic Pump
1 x Sample Pump
1 x Condensate Sensor
1 x Fine Filter
3 x Calibration Solenoid Valves
Sample Inlet Condition Temperature Max 140 Deg C
(Dewpoint 65 Deg C max)
Sample Flow 240 LPH (4 LPM) max
Sample Outlet Temperature 5 Deg C
Wetted Parts SS 316, PTFE, Viton, Silicon, HDPE
Outputs 1 x Triac: to Drive SSR / Contactor for Heated Hose
1 x Relay: For Sample Probe Blowback Solenoid Valve
1 x Relay: For Sample Probe Sample Solenoid Valve
1 x Relay: Fault
RS 485 with MODBUS RTU Protocol
Specifications / Model SGI - 320
Analysers As per Measurement and Order
Mounting Wall Mounted or Free Standing Rack
Sample Inlet Condition Temperature Max 140 Deg C
(Dewpoint 65 Deg C max)
Sample Flow 240 LPH (4 LPM) max
Wetted Parts SS 316, PTFE, Viton, Silicon, HDPE
Outputs 1 x Triac: to Drive SSR / Contactor for Heated Hose
1 x Relay: For Sample Probe Blowback Solenoid Valve
1 x Relay: For Sample Probe Sample Solenoid Valve
1 x Relay: Fault
RS 485 with MODBUS RTU Protocol
