Gas Sampling Probes
Probe Front
Gas Sampling Component

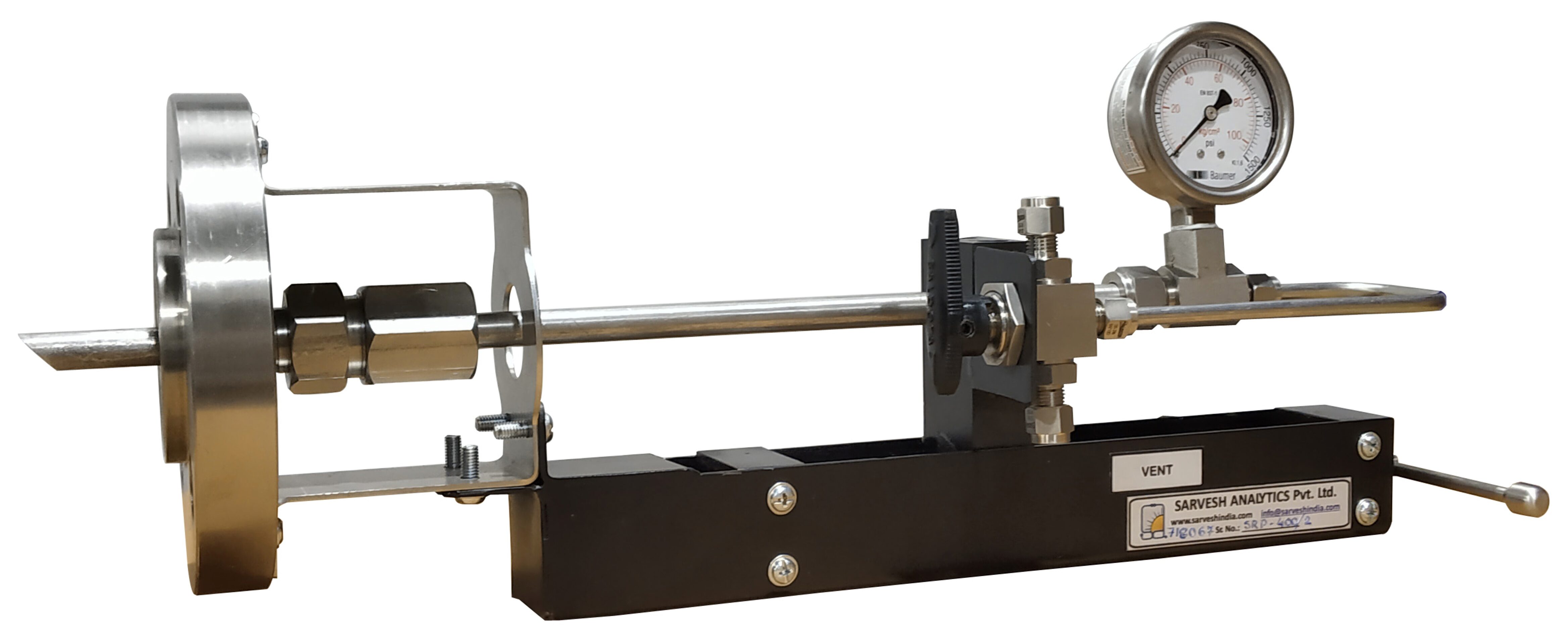

Our Retractable Sample Probes SRP – 400 can be inserted or removed from the active process line. The Probe tube glides through a specially designed fittings which are tested at 100 bar.

It has three way valve to isolate the downstream Sample Line or after retraction safely bleed the trapped fluid. This makes maintenance lot more safer and easier.

Applications

  • Engineered for safe operations
  • Compact and Sleek design
  • No welding on Sample Path
  • Simple Installation and operation
  • Non Fly-Off Design
  • Separate Sample and Bleed Port
  • Pressure Indication for Safe Bleed
  • Various Flange options available
  • Many option of insertion length available
Specifications SRP - 400
Process Connections 1.5" / 2" ANSI #300 / 600
Probe Length 200 - 800 mm
Sample Tube 12 mm OD (8mm ID)
Wetted Parts SS316, PTFE, VITON
Design Temperature 180 Deg C Max
Design Pressure 100 Kg/ cm2
