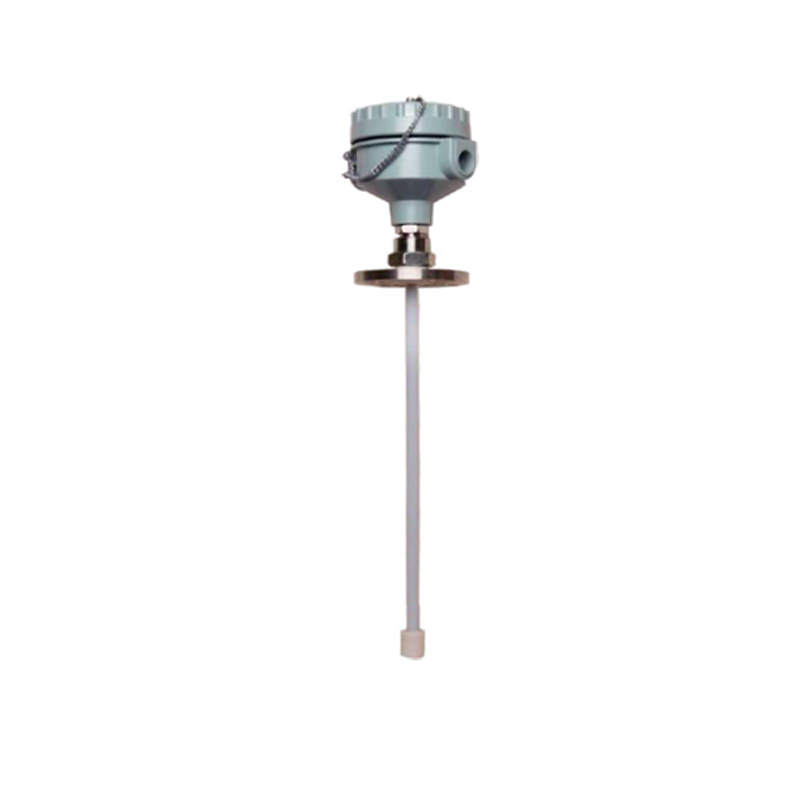

CAPACITANCE TYPE LEVEL TRANSMITTER
SERIES : SC / L – 701
A new generation, Capacitance based level transmitter for any type of liquids. Eltran is based on the physical properties of capacitor. The sensor selection is based on the type of liquid and can be measured from 100mm to 1500mm with rugged probe and above 1500 till 15000 flexible probe.
Categories: level, Level Transmitter
ENGINEERING SPECIFICATION:
- Measuring Range : 100 to 1500 mm Rugged Probe / 1500 to 15000 mm Flexible Probe
- Transmitter Type : Loop Powered
- Supply Voltage : 12 to 24 V DC
- Out Put : 4-20mA @ Constant Current Load of 500Ω
- Pressure Rating : 6 kg / cm²
- Temperature : -20 to 100 ° C
- Enclosure : Die Cast Aluminum Duly Approved Flame Proof Approved For IP 65/67
- Resolution : 2mm
- Accuracy : ± 0.25 % FSR
