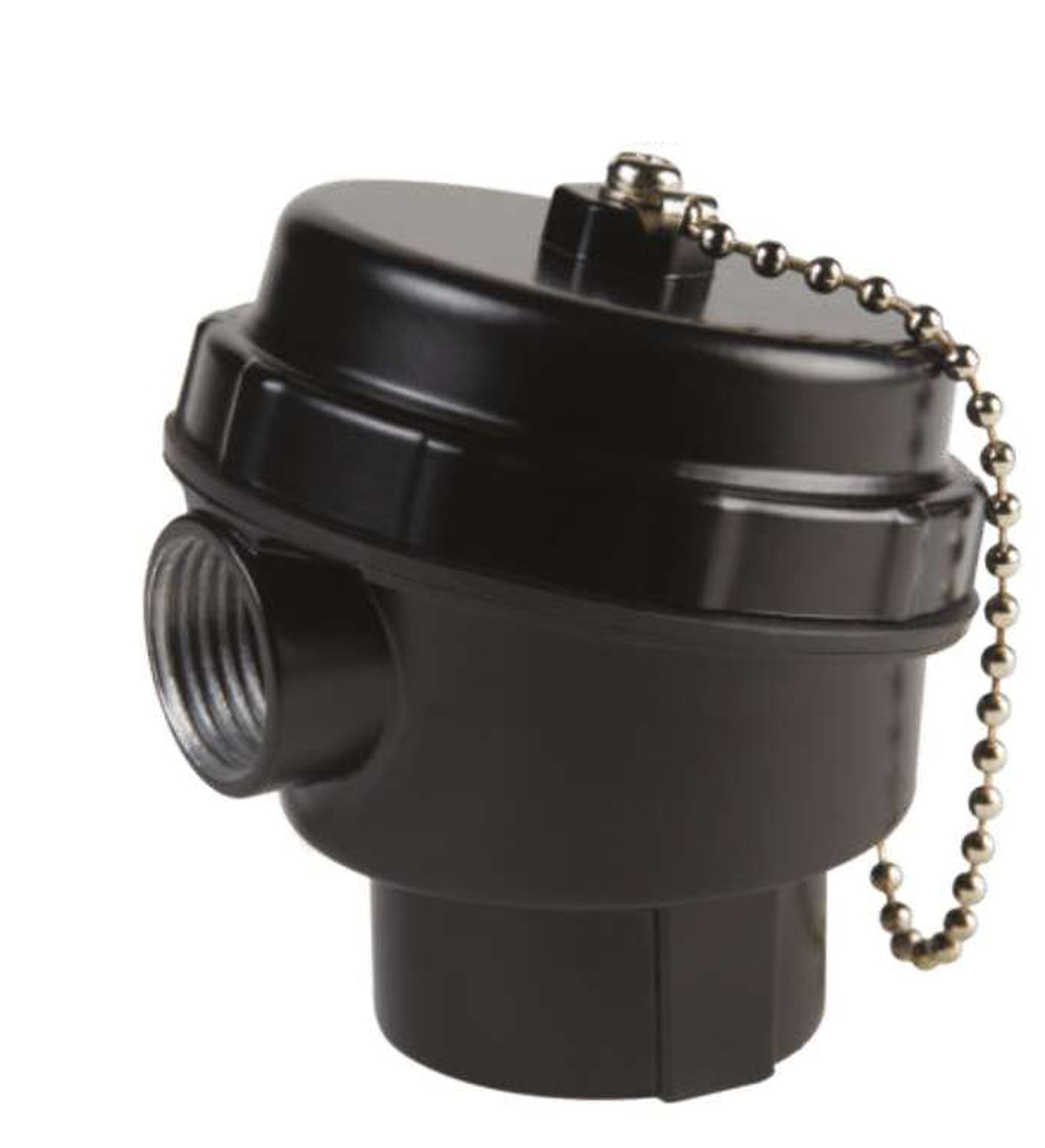

STANDARD THERMOCOUPLE HEAD
• Drawing No : UDP-STB-02112019/UDP-STCR-02112019
•
Certification : IP68
•
EX-Works IP68 Price - Silver paint : Price on Demand * MOQ 100 nos.
•
Ex-Works IP68 Price - Powder Coating : Price on Demand * MOQ 100 nos.
•
Payment Terms : 50% Advance and Balance against Proforma Invoice.
•
Delivery : 20 Days
•
Raw Material : ADC12/LM2
•
Standard Colour : Black Powder Coating
•
Chain : Dia 3.50 x 135 long MS Nickle Plated Ball Chain
•
Chain Clip : MS Nickel Plated Clip
•
Screws : MS Nickel Plated
•
"O" Ring : Natural (Nitrile)
•
Cable Entry : 1/2" BSP
•
Bottom Entry : 1/2" BSP
•
Height & Width : 76 mm X 70 mm
•
Packing : 100 Pcs / Carton Pigeon Hole
| OPTIONAL @ ADDITIONAL COST |
|---|
| Inside ceramic fitting : Not Available. |
| Cable Entry - Optional Size : 1/2" NPT |
| Bottom Entry - Optional Size : 1/4" BSP, 1/2"NPT |
| Cable Gland - Aluminium Nickel Plated |
| Rubber Gland - Neoprene |
| "O" Ring - Neoprene |
| Chain - SS 304 |
| Clip - SS 304 |
| Screw : SS 304 |
| Other Colour : White, Black, Matt & As per customer requirement for MOQ of 1000 nos. |
