Premium Rack Solution for Rapid Deployment
The Vertiv VR Rack family delivers a premium rack solution built with reliable engineering and designed for easy configuration. It is available in eight standard sizes and can be modified to suit your needs with the addition of optional accessories like cable and airflow managers. The Vertiv VR Rack has load capacities of 3,000 pounds static and 2,250 dynamic, and its frame has about 2.5 inches of additional useable depth compared to other racks. With extensive inventories around the globe, the Vertiv VR Rack can be rapidly deployed and help your network get online in no time.
- 42U or 48U options, all with side panels, casters, and adjustable leveling feet for added stability
- Reliable frame supports load capacities of up to 3,000 pounds static and 2,250 pounds dynamic
- Supports all standard rack-based equipment and has two pairs of full height 19” EIA mounting rails
- 2.5 inches deeper than similar sized racks and has a full complement of cable and airflow management accessories so you can configure the rack to fit your needs
- Tool-less removeable top panel and cable entry holes that allow insertion of up to 2000 Cat6 cables or 60A PDU plugs
- Two dual-purpose full height depth adjustable PDU/cable management brackets mounted in the zero U space
- Optional 2000lbs. load rating shock packaging

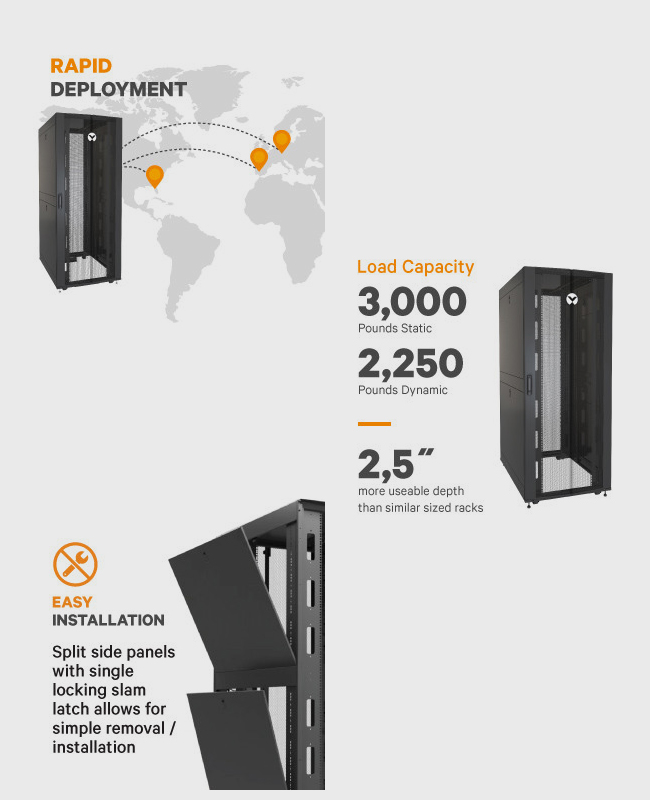

RAPID DEPLOYMENT
With extensive inventories around the globe, the Vertiv VR Rack is available for quick shipment to enable your rapid deployments. As demand for IT systems grows from hyperscale facilities to the edge, long delays in deployment cycles are not acceptable. The Vertiv VR Rack is available where and when it’s needed.
BEST-IN-CLASS ENGINEERING
With load capacities of 3,000 pounds static and 2,250 dynamic, the Vertiv VR Rack features rugged construction capable of supporting even the most extreme high-density architectures. Its design delivers 2.5 inches more useable depth than similar sized racks, creating room for more equipment, such as deeper servers/switches and 60A PDUs.
EFFICIENT & FULLY CONFIGURABLE
The Vertiv VR Rack has a full complement of cable management and airflow management accessories. Tool-less design features enable easy rack configuration and adjustments, equipment installation, and service.
ENTERPRISE DATA CENTER
Today’s enterprise facilities are changing, adjusting to the proliferation of cloud and edge computing, and often shrinking and moving to higher-density architectures. They also are more critical than ever, and the Vertiv VR Rack delivers the quality engineering and flexible configurations needed in changing environments.
HYPERSCALE
Sprawling hyperscale data centers and cloud facilities house thousands of racks and are growing all the time. The equipment in these racks must be installed easily and serviced efficiently, and the Vertiv VR Rack makes that possible with more useable space than similar products and tool-less, easy-access design features throughout.
s
EDGE
The edge is expanding at a faster rate than suppliers can keep pace with. With fully-stocked inventories around the world, Vertiv can meet your rapid deployment needs. And with 2.5 inches of additional useable depth in eight standard sizes, the Vertiv VR Rack delivers a solution for edge locations of all shapes and sizes.Specifications
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | 743000800000 |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | VERTIV |
| Product Line: | VR |
| Product Name: | Vertiv VR Rack - 42U Server Rack Enclosure| 800x1100mm| 19-inch Cabinet (VR3150) |
| Marketing Information: | The Vertiv VR Rack VR3150 is a 42U server rack built with reliable engineering and is designed for simple and easy configuration. It has dimensions of 2000mm x 800mm x 1100mm (height, width, and depth), and has a deep frame that provides users around 2.5 inches more useable depth than similar sized racks. It has load capacities of 3,000 pounds static and 2,500 pounds dynamic. It is delivered ready for high density environments and supports a wide variety of equipment, including: servers, storage, PDUs, UPSs, console servers, and KVM switches. The zero U spaces in the Vertiv VR Rack have brackets and mounting holes for tool-less installation and removal of rack PDUs and cable management accessories. Each rack also comes with two sets of 19-inch EIA rails for sliding shelves, and the rack has split side panels with single locking slam latch that allows for easy single person installation and removal. |
| Product Type: | Rack Cabinet |
| Technical Information | |
| Application/Usage: | Server, UPS, PDU, Storage and KVM Switch |
| Physical Characteristics | |
| Form Factor: | Floor Standing |
| Product Color: | Black |
| Product Material: | Steel |
| Dynamic/Rolling Weight Capacity: | 1133.98 kg |
| Static/Stationary Weight Capacity: | 1360.78 kg |
| Height: | 2 m (78.70") |
| Width: | 80.01 cm (31.50") |
| Depth: | 1.10 m (43.30") |
| Weight (Approximate): | 162 kg |
| Rack Height: | 42U |
| Rack Width: | 48.26 cm (19") |
| Rack Depth: | 1.12 m (43.90") |
| Miscellaneous | |
| Package Contents |
|
| Additional Information: |
|
| Assembly Required: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
About the Brand
Digital Continuity Solutions
Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs
Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally.
Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information.

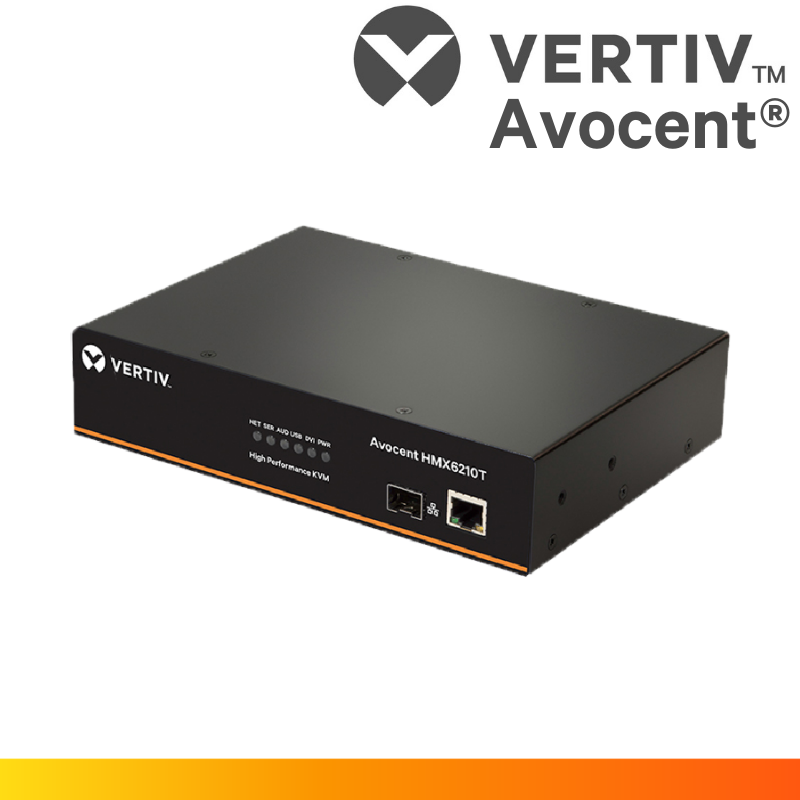

Avocent
The power of being there
When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs.

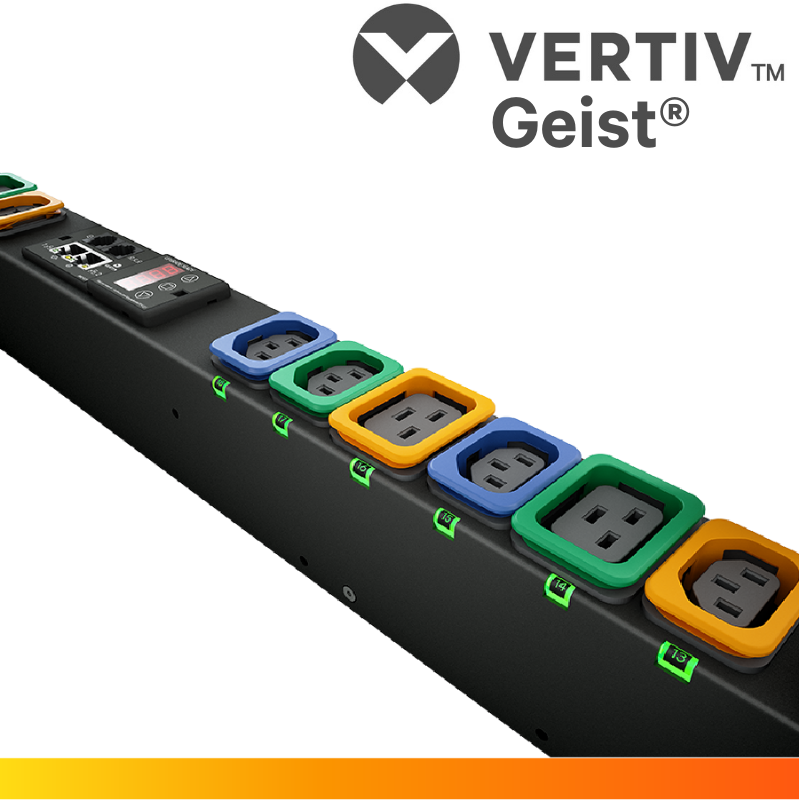

Geist
Reliable power management
Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy.

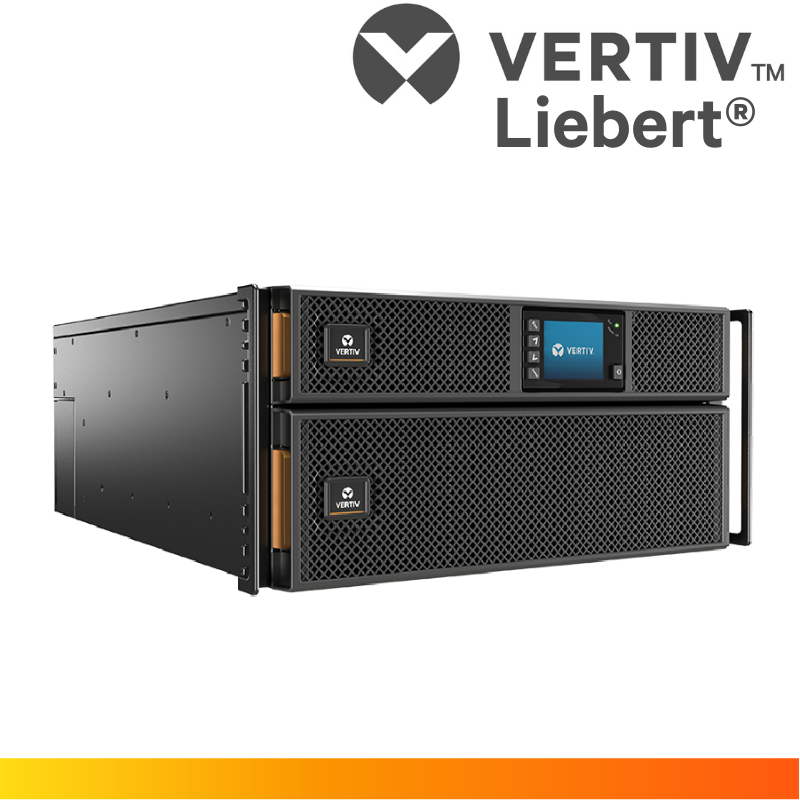

Liebert
