Alarm Valve
Alarm Valve Model H
Technical Specification
• Ductile Iron material to ASTM - A536
•
Flanged x Flanged, Grooved x Grooved and Grooved x Flanged available
•
Rated for maximum 17.5 Bar (250 PSI) operating pressure
•
Size: 80, 100, 150 and 200 NB
•
Variable Pressure Trim with Retard Chamber and Water Motor Gong
•
Constant Pressure Trim available as an option
•
Epoxy painted internally & externally
•
UL Listed and FM Approved

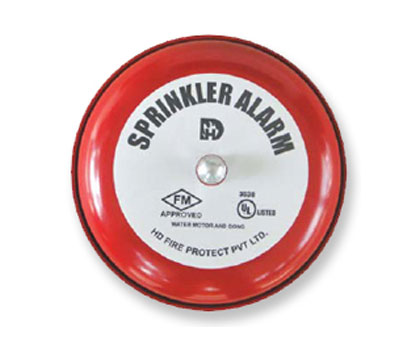

Water Motor Gong Bell
Technical Specification
• Hydraulically operated mechanical bell used along with fire protection system valves
•
Corrosion resistant Aluminium alloy material, epoxy coated all over
•
Wall mounted or direct online mounting type
•
UL Listed and FM Approved

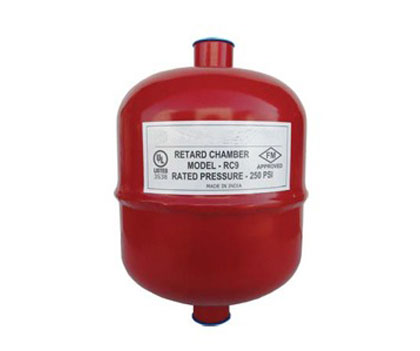

Retard Chamber
Technical Specification
• Retarding Chamber is used with Alarm Valve Trim when variable pressure is anticipated in the system. It is a holding tank to prevent sounding of Sprinkler Alarm during water pressure surge
•
Material Stainless Steel
•
Connection N 3/4" BSPT (F)
•
UL Listed and FM Approved
